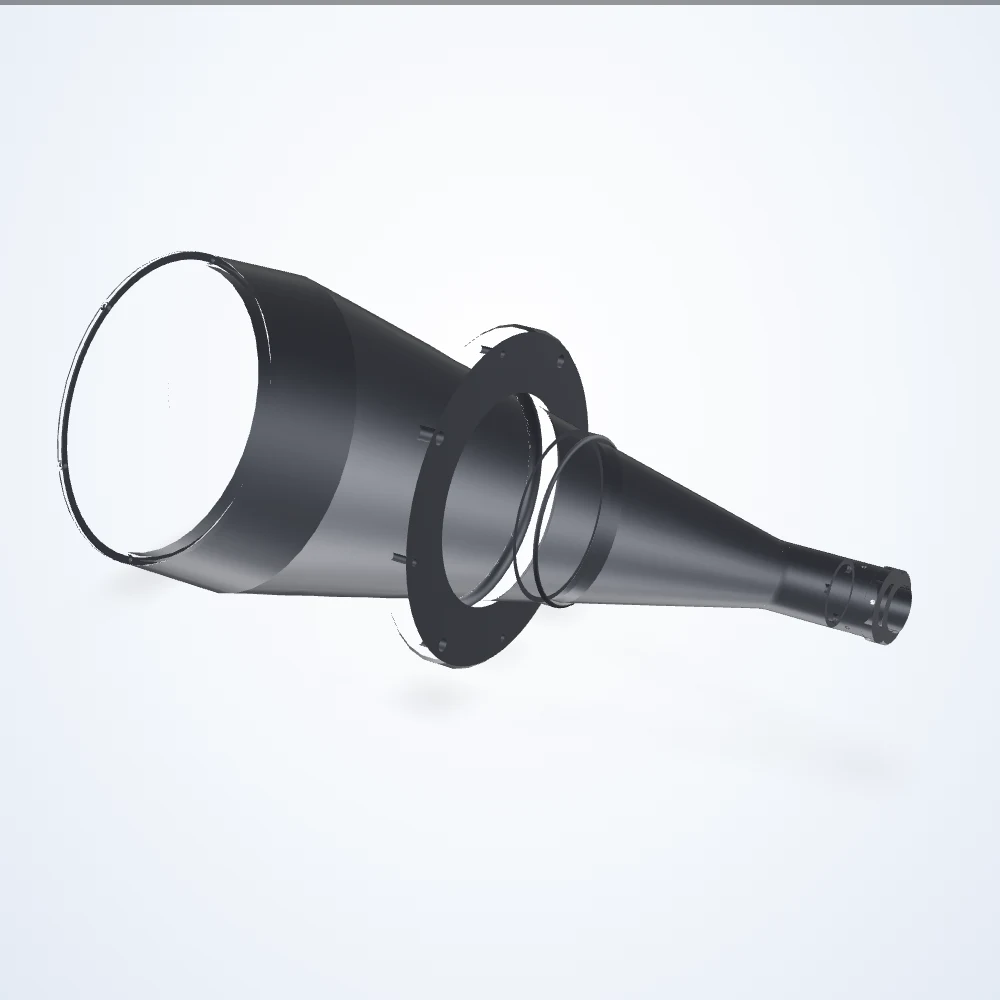

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.074× telecentric lens, 1/1.2", C-mount (LS-TCL-0232)
Model LS-TCL-0232
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 396 mm; depth of field 75.6 mm.
Specifications
| Model | LS-TCL-0232 |
|---|---|
| Magnification | 0.074× |
| Working distance | 396 mm |
| Sensor format | 1/1.2" |
| Mount | C-Mount |
| Depth of field | 75.6 mm |
| Dimensions approximate | 487.8 x 200 x 200 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Fov @ 1.2″ | 153.38 x 96.35 mm |
| Fov @ 1/1.8″ | 96.35 x 72.03 mm |
| Fov @ 2/3″ | 114.86 x 95.81 mm |
| Front diameter | 200 mm |
| Image circle | 13.3 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 69 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/8 |
| Weight | 5850 Grams |
