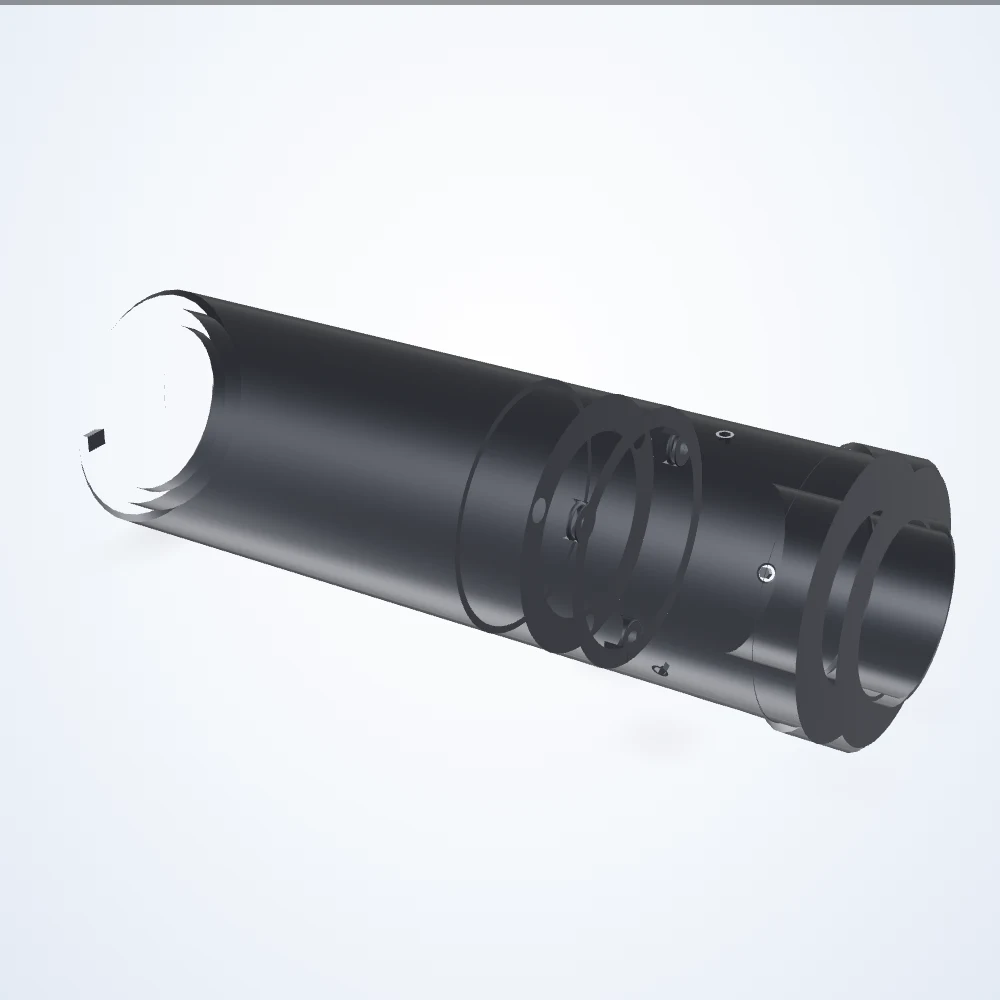

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.639× telecentric lens, 1/1.2", C-mount (LS-TCL-0223)
Model LS-TCL-0223
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 44.3 mm; depth of field 1.4 mm.
Specifications
| Model | LS-TCL-0223 |
|---|---|
| Magnification | 0.639× |
| Working distance | 44.3 mm |
| Sensor format | 1/1.2" |
| Mount | C-Mount |
| Depth of field | 1.4 mm |
| Dimensions approximate | 125.4 x 37. x 37.7 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Fov @ 1.2″ | 17.76 x 11.16 mm |
| Fov @ 1/1.8″ | 11.16 x 8.34 mm |
| Fov @ 2/3″ | 13.3 x 11.1 mm |
| Front diameter | 37.7 mm |
| Image circle | 13.3 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 11 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/11 |
| Weight | 327 Grams |
