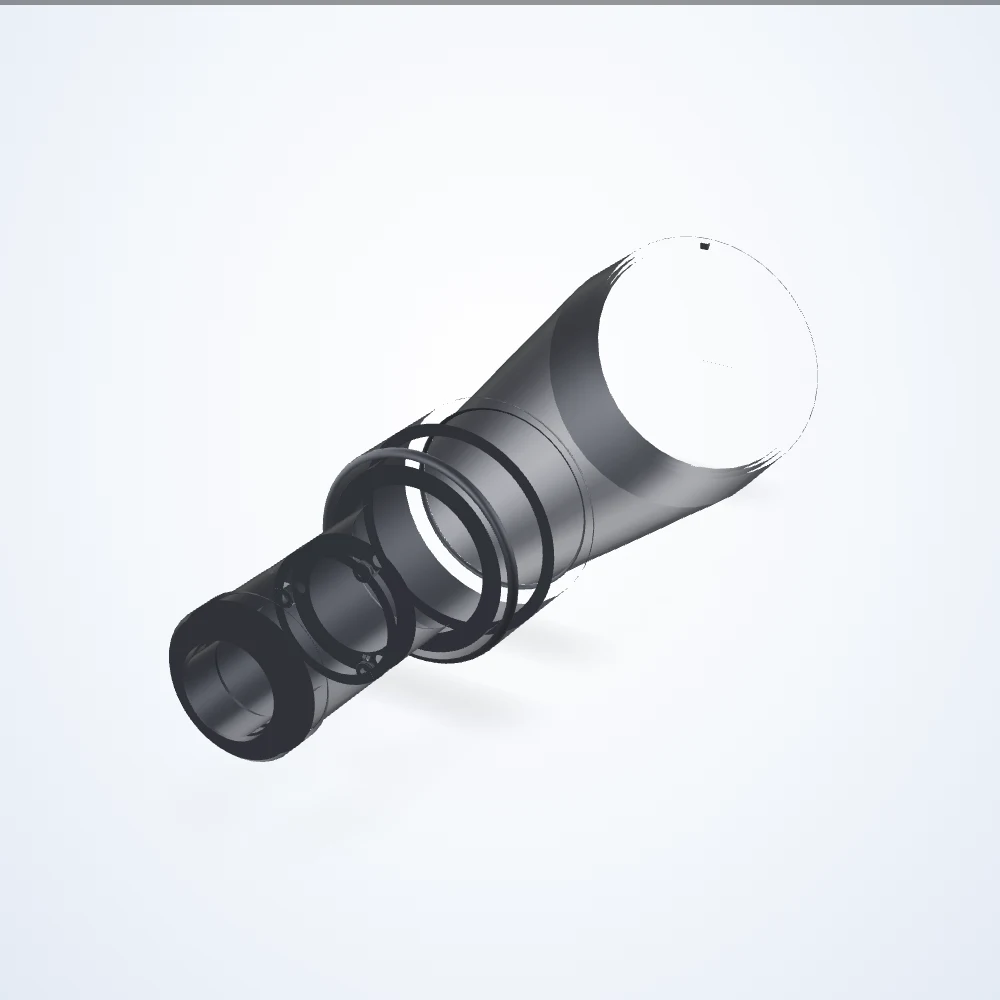

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.19× telecentric lens, 1/1.2", C-mount (LS-TCL-0227)
Model LS-TCL-0227
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 157.8 mm; depth of field 11.5 mm.
Specifications
| Model | LS-TCL-0227 |
|---|---|
| Magnification | 0.19× |
| Working distance | 157.8 mm |
| Sensor format | 1/1.2" |
| Mount | C-Mount |
| Depth of field | 11.5 mm |
| Dimensions approximate | 238.7 x 80 x 80 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Fov @ 1.2″ | 59.74 x 37.53 mm |
| Fov @ 1/1.8″ | 37.53 x 28.05 mm |
| Fov @ 2/3″ | 44.74 x 37.32 mm |
| Front diameter | 80 mm |
| Image circle | 13.3 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 27 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/8 |
| Weight | 943 Grams |
