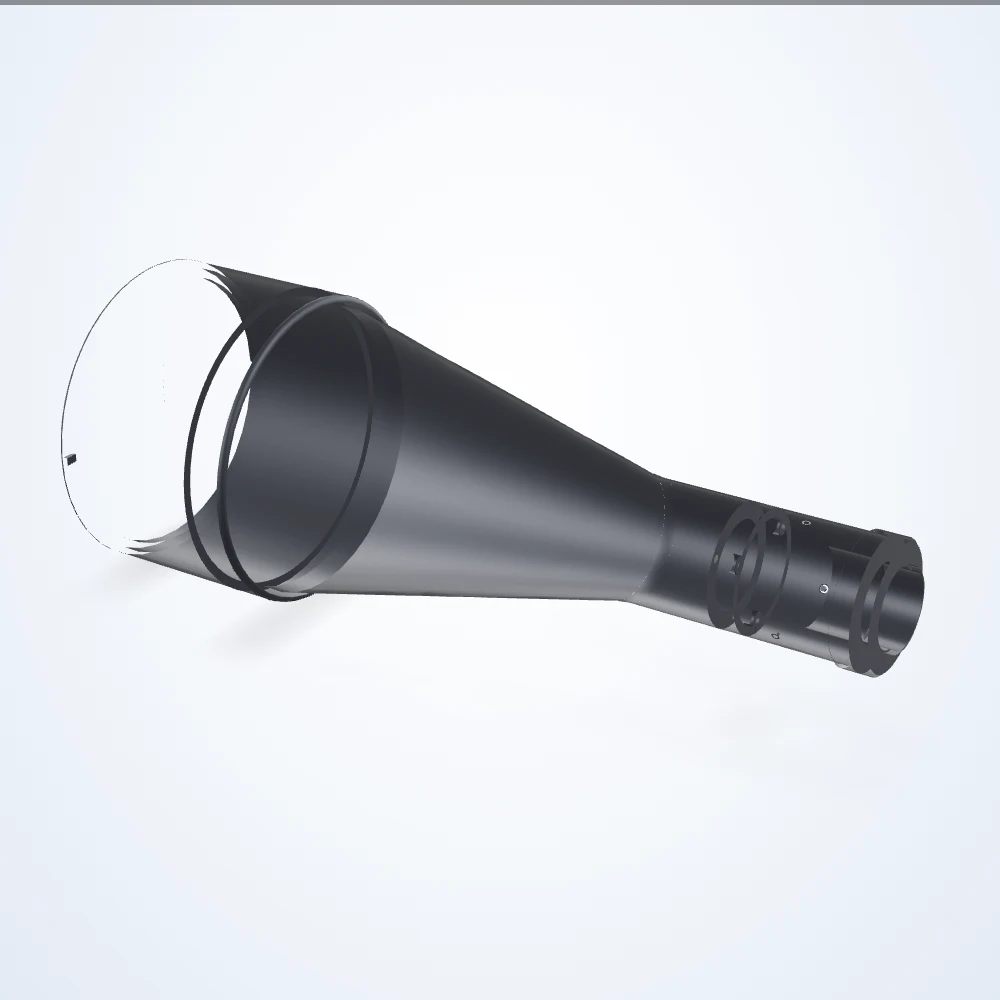

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.166× telecentric lens, 1/1.2", C-Mount (LS-TCL-0228)
Model LS-TCL-0228
0.166× telecentric lens, 1/1.2", C-Mount. Working distance 181.9 mm. Depth of field 15 mm.
Specifications
| Model | LS-TCL-0228 |
|---|---|
| Depth Of Field | 15 mm |
| Distortion Maximum (%) | < 0.1 |
| Distortion Typical (%) | < 0.08 |
| Filter Thread | No Filter Threads |
| FoV @ 1/1.8″ | 42.95 x 32.11 mm |
| FoV @ 2/3″ | 51.2 x 42.71 mm |
| Fov @ 1.2″ | 68.37 x 42.95 mm |
| Front Diameter | 100 mm |
| Image Circle Diameter | 13.3 mm |
| Imager Format | 1/1.2" |
| Lens Type | Telecentric |
| Magnification | 0.166× |
| Mount | C-Mount |
| Resolution (Pixel Size) | 31 μm |
| Telecentricity Maximum | 0.10° |
| Telecentricity Typical | < 0.08° |
| Working Distance | 181.9 mm |
| Working ƒ/N | f/8 |
