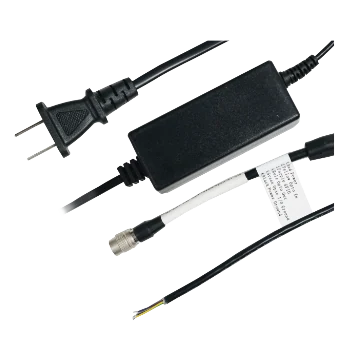

Power Cord, P7 6-pin aviation connector (female) + 4-core Open to AC 2-prong plug, End A: 4000 mm; End B: 1000 mm (LS-SY-PWR-05)
Model LS-SY-PWR-05
Power Cord, P7 6-pin aviation connector (female) + 4-core Open to AC 2-prong plug, End A: 4000 mm; End B: 1000 mm. Integrated power adapter for power and I/O input/output signals on cameras with P7 6-pin connectors
Features
- Integrated power adapter for power and I/O input/output signals on cameras with P7 6-pin connectors
Specifications
| Model | LS-SY-PWR-05 |
|---|---|
| End A connector | P7 6-pin aviation connector (female) + 4-core Open |
| End B connector | AC 2-prong plug |
| Cable diameter | A end: 5.5 mm |
| Length | End A: 4000 mm; End B: 1000 mm |
| Cable mechanical | End A: UL2464, 26 AWG × 4C + 22 AWG × 2C + AB; End B: 60227, IEC, 52 (RVV), 2*0.5mm^2 |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | > 1000 mating cycles |
| Min. bending radius | 100 mm |
| Applicable scenario | Static scenes |
| Input voltage | 12 V |
| Output power | 24 W |
| Output current | 2 A |
| Over current protection | Output overcurrent protection, 2.3 A~4 A |
| AC plug | China standard 2-pin plug |
| Working temperature | 0°C~ 40°C |
| Certification | RoHS, 3C |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
