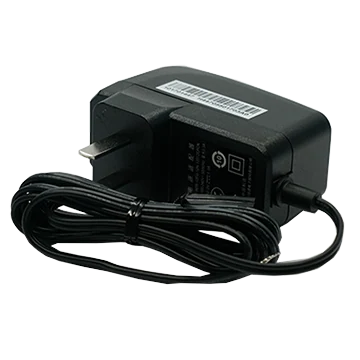

Power Cord, Two-prong AC plug (CCC standard) to Open (2-pin), 1.5 m (LS-ADS-12FG-12N-12012EPCN)

Cables

Power Cord, Two-prong AC plug (CCC standard) to Open (2-pin), 1.5 m (LS-ADS-12FG-12N-12012EPCN)

Model LS-ADS-12FG-12N-12012EPCN

Power Cord, Two-prong AC plug (CCC standard) to Open (2-pin), 1.5 m. 12 V power adapter for device power; available in multiple specifications

$39.00 USDIn stock · 4 available

Inventory updated Oct 16, 2026

0.31 kg shipping weight · Ships in 2-3 weeks

Need volume or project pricing?

Build a system with this part → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-ADS-12FG-12N-12012EPCN

Features

  • 12 V power adapter for device power; available in multiple specifications

Specifications

ModelLS-ADS-12FG-12N-12012EPCN
End A connectorTwo-prong AC plug (CCC standard)
End B connectorOpen (2-pin)
Cable mechanical24# (11/0.16AS)*2F
Length1.5 m
Cable colorBlack
Applicable scenarioStatic scenes
Input voltage12 VDC
Input current0.3 A
Output powerMax. 12 W
Output current0 A to 1 A
Over current protection1.1 A to 2.0 A
Over voltage protectionMax. 15 V
MTBF50000 hours, with test standard of MIL-HDBK-217F
Working temperature0 °C to 40 °C (32 °F to 104 °F)
CertificationRoHS, CCC
PackagingIndividual package
Shipping weight (estimated)0.31 kg
