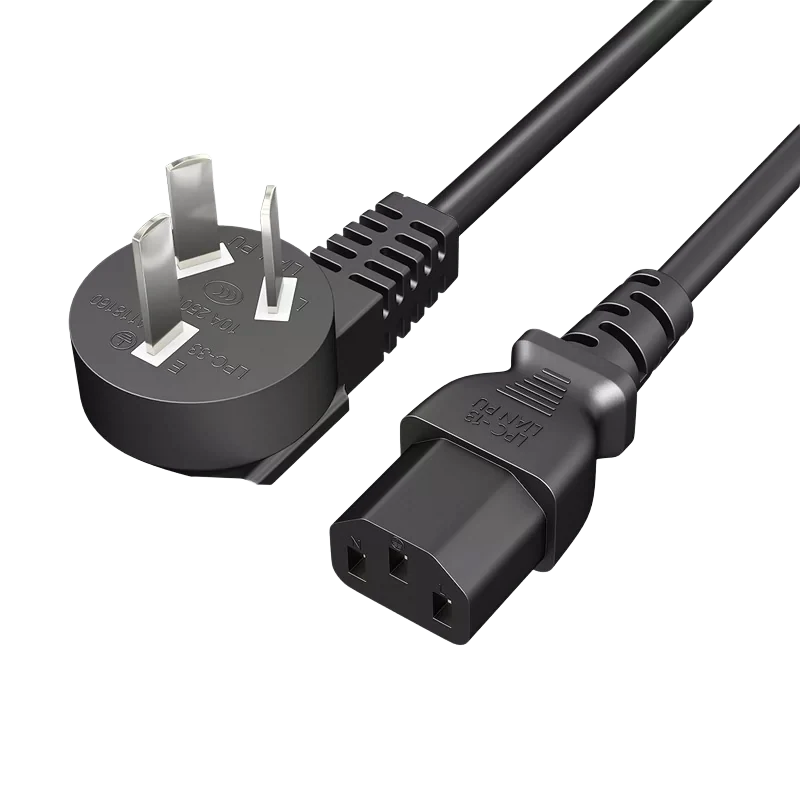

Power Cord, S3p (TWN) to C13 plug, 1.5 m (LS-C13-1.5)
Model LS-C13-1.5
Power Cord, S3p (TWN) to C13 plug, 1.5 m. AC power cord for use with power adapters and switching power supplies; available in multiple specifications
Features
- AC power cord for use with power adapters and switching power supplies; available in multiple specifications
Specifications
| Model | LS-C13-1.5 |
|---|---|
| End A connector | S3p (TWN) |
| End B connector | C13 plug |
| Cable diameter | 7.0 mm |
| Length | 1.5 m |
| Cable mechanical | VCTF 3X0.75mm2 |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | 3000 mating cycles |
| Applicable scenario | Static scenes |
| Max. ±45° bending cycles | -- |
| Max. ±60° bending cycles | 5000 times |
| Max. ±90° bending cycles | -- |
| Max. voltage | 125 VAC |
| Max. operating current | 7 A |
| Working temperature | -20°C ~ 70°C |
| Certification | CNS |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
