Cables

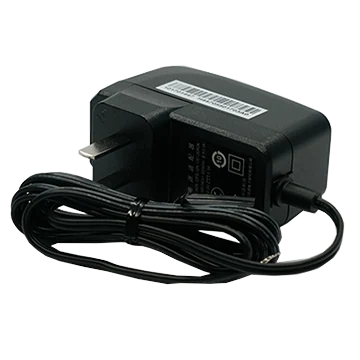

Power Cord, Two-prong AC plug (CCC standard) to DC connector (Φ5.5 mm × Φ2.1 mm × 10 mm), 0.8 m (LS-ADS-12IM-12-4-12012E-H)
Model LS-ADS-12IM-12-4-12012E-H
Power Cord, Two-prong AC plug (CCC standard) to DC connector (Φ5.5 mm × Φ2.1 mm × 10 mm), 0.8 m. 12 V power adapter for device power; available in multiple specifications
Features
- 12 V power adapter for device power; available in multiple specifications
Specifications
| Model | LS-ADS-12IM-12-4-12012E-H |
|---|---|
| End A connector | Two-prong AC plug (CCC standard) |
| End B connector | DC connector (Φ5.5 mm × Φ2.1 mm × 10 mm) |
| Cable mechanical | 22# |
| Length | 0.8 m |
| Cable color | Black |
| Applicable scenario | Static scenes |
| Input voltage | 12 VDC |
| Input current | 0.3 A |
| Output power | Max. 12 W |
| Output current | 0 A to 1 A |
| Over current protection | 1.1 A to 2.0 A |
| Over voltage protection | Max. 15 V |
| MTBF | 50000 hours, with test standard of Telcordia SR-332 Issue 02 (2006) |
| Working temperature | –10 °C to 40 °C (14 °F to 104 °F) |
| Certification | RoHS, CCC |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
