Home / Lenses / CCTV lenses / Fisheye lenses

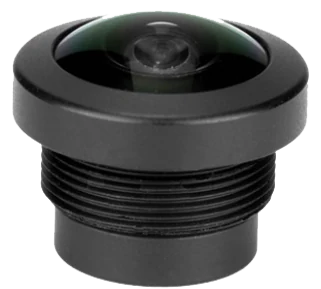

0.85 mm, 1/3.2", 8 MP, M12-mount Fisheye Lens (LS-SFY8524C-8M)

CCTV lenses

0.85 mm, 1/3.2", 8 MP, M12-mount Fisheye Lens (LS-SFY8524C-8M)

Model LS-SFY8524C-8M

0.85 mm, 1/3.2", 8 MP, M12-mount Fisheye Lens. A 0.85 mm F2.4 M12 fisheye lens for 1/3.2" 8-megapixel sensors with a 210 degree super-wide field of view. At a glance: focal length 0.85mm; format 1/3.2"; resolution 8.0 Megapixel; aperture F2.4 Fixed iris; mount M12.

$49.00 USDIn stock · 3 available

Inventory updated Oct 14, 2026

0.12 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day

Features

  • High resolution: 8.0 megapixel covering 4K,1080P
  • Focal length: 0.9mm support wide FOV
  • Small format: 1/3.2"
  • Wide angle: 210° super wide angle

Specifications

ModelLS-SFY8524C-8M
Resolution8.0 Megapixel
Format1/3.2"
Focal length0.85mm
Image circledia. 3.04
ApertureF2.4 Fixed iris
Angle of view (1/3.2")210 x 210 x 210 deg
Relative illumination90%
Distortion<-4.5%
Back focal length1.95mm
CRA14°
Sizedia. 18.7 x 29.27mm
Total track length (TTL)13mm
MountM12
Weight15g ( 7G element )
Shipping weight (estimated)0.12 kg

Applications

  • Observatory
  • street
  • office
  • intercom
  • surveillance
Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.

Light controllers LensesSelection guide
