CCTV lenses

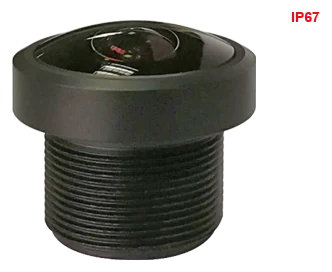

1.5 mm, 1/2", 5 MP, M12-mount Fisheye Lens (LS-SFY1520IR.IP67.H-5M)
Model LS-SFY1520IR.IP67.H-5M
1.5 mm, 1/2", 5 MP, M12-mount Fisheye Lens. A 1.5 mm F2.0 IP67 waterproof M12 fisheye lens for 1/2" 5-megapixel sensors with a 185-210 degree field of view, available as a lens only or with an ICR holder. At a glance: focal length 1.5mm; format 1/2"; resolution 5 Megapixel; aperture F2.0 Fixed Iris; mount M12.
Features
- High resolution: 5 megapixel covering 1080P
- Focal length: 1.5mm support wide FOV
- Large format: 1/2" can be used at 1/2"
- Large FOV: 185°~210° degree wide
- ICR Options: ICR holder & single lens optional
- Holder type: SFY1520IR.IP67.H-5M
Specifications
| Model | LS-SFY1520IR.IP67.H-5M |
|---|---|
| Resolution | 5 Megapixel |
| IR corrected | IR |
| Image circle | dia. 4.2 |
| Format | 1/2" |
| Focal length | 1.5mm |
| Aperture | F2.0 Fixed Iris |
| Angle of view (1/2", DxHxV) | 210 x 210 x 210 deg |
| Angle of view (1/2.5", DxHxV) | 210 x 210 x 210 deg |
| M.O.D. | 0.3m |
| CRA | <9.93° |
| Back focal length | 3.31mm |
| Total track length (TTL) | 16.68mm |
| Distortion | 6.1% |
| Mount | M12 |
| Ingress protection | IP67 |
| Holder | ICR holder (drawing: 15.02 x 26.7 mm, lens dia. 16, holder torque 100-400 gf.cm) |
| Shipping weight (estimated) | 0.21 kg |
Applications
- Observatory
- street
- office
- building
- smart home
