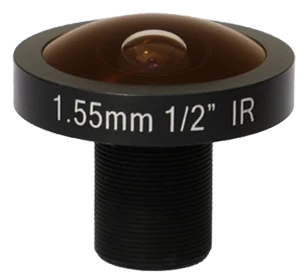

1.55 mm, 1/2", 8 MP, M12-mount Fisheye Lens (LS-SFY15525XIR-8M)

CCTV lenses

1.55 mm, 1/2", 8 MP, M12-mount Fisheye Lens (LS-SFY15525XIR-8M)

Model LS-SFY15525XIR-8M

1.55 mm, 1/2", 8 MP, M12-mount Fisheye Lens. High resolution: 8.0 megapixel covering 4K,1080P. Focal length: 1.55mm support wide FOV. Large format: 1/2" can cover 1/2", 1/2.8", 1/3". At a glance: focal length 1.55 mm; format 1/2"; resolution 8.0 Megapixel; aperture F2.5 Fixed iris; mount M12.

$49.00 USDIn stock · 4 available

Inventory updated Oct 14, 2026

0.12 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day

Features

  • High resolution: 8.0 megapixel covering 4K,1080P
  • Focal length: 1.55mm support wide FOV.
  • Large format: 1/2" can cover 1/2", 1/2.8", 1/3".
  • Wide FOV: 185 degree surveillance for D.V.H.

Specifications

ModelLS-SFY15525XIR-8M
Resolution8.0 Megapixel
Format1/2"
Focal length1.55 mm
Back focal length3.6 mm
ApertureF2.5 Fixed iris
Angle of view (1/2", DxHxV)185 x 185 x 185 deg
Angle of view (1/2.3", DxHxV)185 x 185 x 185 deg
Angle of view (1/2.8", DxHxV)185 x 185 x 150 deg
M.O.D.0.1 m
Distortion106%
Sizedia. 28 x 24.05 mm
Optical total length27.4 mm
MountM12
Weight15 g
Shipping weight (estimated)0.12 kg

Applications

  • Observatory
  • street
  • office
  • smart home
