Home / Lenses / CCTV lenses / Fisheye lenses

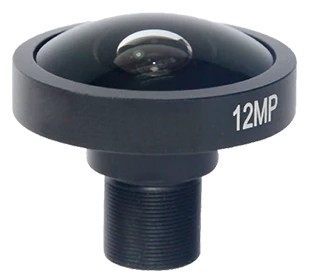

2 mm, 1/1.7", 12 MP, M12-mount Fisheye Lens (LS-SFY2024IR-12M)

CCTV lenses

2 mm, 1/1.7", 12 MP, M12-mount Fisheye Lens (LS-SFY2024IR-12M)

Model LS-SFY2024IR-12M

2 mm, 1/1.7", 12 MP, M12-mount Fisheye Lens. 2.0 mm F2.4 12 megapixel fisheye lens with a 185° angle of view and >93.87% relative illumination, M12 mount; the 1/1.7" format covers 1/1.8", 1/2" and 1/2.5" cameras. At a glance: focal length 2.0 mm; format 1/1.7"; resolution 12 Megapixel; aperture F2.4 Fixed Iris; mount M12.

$49.00 USDIn stock · 4 available

Inventory updated Oct 14, 2026

0.15 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day

Features

  • High resolution: 12 megapixel, covers 4K and 1080P
  • Focal length: 2.0 mm for a wide FOV
  • Large format: 1/1.7" covers 1/1.8", 1/2" and 1/2.5" cameras
  • Large aperture: F2.4
  • Illumination: >93.87% relative illumination

Specifications

ModelLS-SFY2024IR-12M
Resolution12 Megapixel
IR correctionIR corrected (day/night)
Format1/1.7"
Image circledia. 5.6 mm
Focal length2.0 mm
ApertureF2.4 Fixed Iris
Angle of view (1/1.7")185 x 185 x 185 deg
M.O.D.0.1 m
Relative illumination>93.87%
Sizedia. 26.5 x 30.47 mm
Total track length (TTL)30.03 mm
Distortion10.6 %
MountM12
Weight35 g
Shipping weight (estimated)0.15 kg

Applications

  • Observatories
  • Streets
  • Offices
Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.

Light controllers LensesSelection guide

Other sizes in the Fisheye lenses series

ModelSizePriceAvailability
LS-SFY11320IR.IP67-8M1.13 mm, 1/2.7", 8 MP, M12-mount $49.00 3 in stockView
LS-SFY11722X-8M1.17 mm, 1/3.2", 8 MP, M12-mount $49.00 3 in stockView
LS-SFY11925XIR-8M1.19 mm, 1/3.2", 8 MP, M12-mount $49.00 2 in stockView
LS-SFY12720IR-5M1.27 mm, 1/2.5", 5 MP, M12-mount $49.00 3 in stockView
LS-SFY12925IR-10M1.29 mm, 1/2.5", 10 MP, M12-mount $49.00 4 in stockView
LS-SFY13920IR-3M1.39 mm, 1/3", 3 MP, M12-mount $49.00 4 in stockView
LS-SFY1424IRF-12M1.4 mm, 1/1.7", 12 MP, M12-mount $49.00 4 in stockView
LS-SFY1520IR-5M1.5 mm, 1/2.5", 5 MP, M12-mount $49.00 5 in stockView
LS-SFY1520IR.IP67-5M1.5 mm, 1/2", 5 MP, M12-mount $49.00 3 in stockView
LS-SFY1520IR.IP67.H-5M1.5 mm, 1/2", 5 MP, M12-mount $49.00 5 in stockView
LS-SFY1522IR-12M1.5 mm, 1/2.3", 12 MP, M12-mount $49.00 2 in stockView
LS-SFY15520IR-12M1.55 mm, 1/2.3", 12 MP, M12-mount $49.00 5 in stockView
LS-SFY15525XIR-8M1.55 mm, 1/2", 8 MP, M12-mount $49.00 4 in stockView
LS-SFY1620FIR-5M1.6 mm, 1/1.8", 5 MP, M12-mount $49.00 2 in stockView
LS-SFY16820IR-3M1.68 mm, 1/2", 3 MP, M12-mount $49.00 4 in stockView
LS-SFY1720IRF-8M1.7 mm, 1/1.8", 8 MP, M12-mount $49.00 2 in stockView
LS-SFY1828FIR-3M1.8 mm, 1/2.7", 3 MP, M12-mount $49.00 3 in stockView
LS-SFY18520IR-12M1.85 mm, 1/1.8", 12 MP, M12-mount $49.00 4 in stockView
LS-SFY18520IR.IP67-12M1.85 mm, 1/1.8", 12 MP, M12-mount $49.00 5 in stockView
LS-SFY1928CIR-12M1.9 mm, 1/1.6", 12 MP, M12-mount $49.00 5 in stockView
LS-SFY2020FIR-5M2 mm, 1/2.5" $49.00 3 in stockView
LS-SFY2122XIR-8M2.1 mm, 1/1.7", 8 MP, M12-mount $49.00 3 in stockView
LS-SFY2516IR-8M2.5 mm, 2/3", 8 MP, CS-mount $49.00 3 in stockView
LS-SFY8524C-8M0.85 mm, 1/3.2", 8 MP, M12-mount $49.00 3 in stockView

See all 29 models in the Fisheye lenses series
