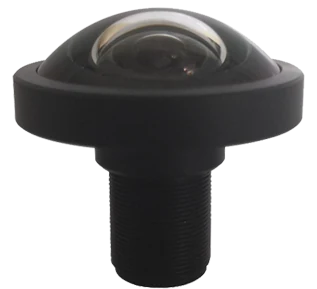

1.4 mm, 1/1.7", 12 MP, M12-mount Fisheye Lens (LS-SFY1424IRF-12M)
Model LS-SFY1424IRF-12M
1.4 mm, 1/1.7", 12 MP, M12-mount Fisheye Lens. 1.4 mm F2.4 fisheye lens for 1/1.7" sensors (also covers 1/2"), rated 12 megapixel (4K, 1080P), giving a 190 degree field of view (D, H, V). IR-corrected M12 lens for 360 panoramic surveillance, LPR and observatory use. At a glance: focal length 1.4 mm; format 1/1.7"; resolution 12 Megapixel; aperture F2.4 Fixed Iris; mount M12.
Features
- High resolution: 12 megapixel covering 4K,1080P
- Focal length: 1.4mm support wide FOV.
- Large format: 1/1.7" can cover 1/2"
- Wide FOV: 190 degree surveillance for D.V.H.
Specifications
| Model | LS-SFY1424IRF-12M |
|---|---|
| Resolution | 12 Megapixel |
| IR corrected | IR |
| Image height | dia. 5.36 mm |
| Format | 1/1.7" |
| Focal length | 1.4 mm |
| Aperture | F2.4 Fixed Iris |
| Angle of view (1/1.7" (IMX226), DxHxV) | 190 x 190 x 190 deg |
| Angle of view (1/1.8" (IMX118), DxHxV) | 190 x 190 x 180 deg |
| M.O.D. | 0.1 m |
| CRA | 12.37° |
| B.F.L. | 3.85 mm (in air) |
| Mechanical back focal length | 3.31 mm (in air) |
| T.T.L. | 16.59 mm |
| Distortion | 97.06% ; F-theta <10.03% |
| Size | dia. 32 x 29.08 mm |
| Mount | M12 |
| Weight | 24 g |
| Resolving power (projector test) | Center 250 lp/mm; edge 250 lp/mm |
| Operating temperature | 30°~ +70° |
| Shipping weight (estimated) | 0.13 kg |
Applications
- Observatory
- LPR (licence plate recognition)
- Streets
- Offices
