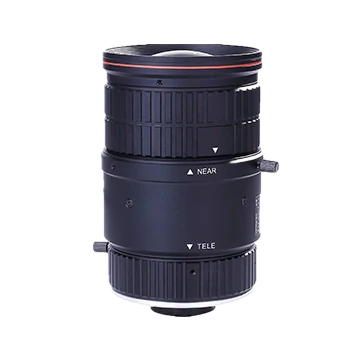

5.7-21mm, F1.5, 3/4", 12 MP, CS-mount lens (LS-MV5721-12MPIR)

Machine vision lenses

5.7-21mm, F1.5, 3/4", 12 MP, CS-mount lens (LS-MV5721-12MPIR)

Model LS-MV5721-12MPIR

5.7-21mm, F1.5, 3/4", 12 MP, CS-mount lens. Large aperture F1.5 Zoom range 5.7–21 mm

Datasheet (PDF) - LS-MV5721-12MPIR 3D model (STEP, ZIP) - LS-MV5721-12MPIR

Features

Large aperture F1.5
Zoom range 5.7–21 mm
Coating covers the infrared band with high infrared transmittance

Specifications

Model	LS-MV5721-12MPIR
Focal length	5.7(W)~ 21(T)mm
F-number	F1.5
Image size	Φ12.5 mm(3/4'')
Distortion	W:-21.6%; T:-1.3%
Minimum object distance	W:0.3 m; T:1 m
Field of view	W:D(12.12 mm):115.6°, H(10.56 mm):101.2°, V(5.94 mm):57.1°; T:D(12.12 mm):35.9°, H(10.56 mm):31.4°, V(5.94 mm):17.8°
Iris control	Manual
Focus control	Manual
Zoom control	Manual
Connector type	CS-Mount
Flange back length	12.5 mm
Dimension	Φ66.6×99.98 mm
Weight	520 g
Temperature	-10 ~ 50°C
Certification	RoHS2.0
Shipping weight (estimated)	0.83 kg

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the Zoom Lens Series series

Model	Size	Price	Availability
LS-MV1550-12MPIR		$329.00	2 in stock	View
LS-MV1236M-5MP		$329.00	3 in stock	View
LS-HV1050M-6MP		$329.00	4 in stock	View
LS-MV1236M-MP		$329.00	3 in stock	View
LS-HV0528M-6MPIR		$329.00	5 in stock	View
