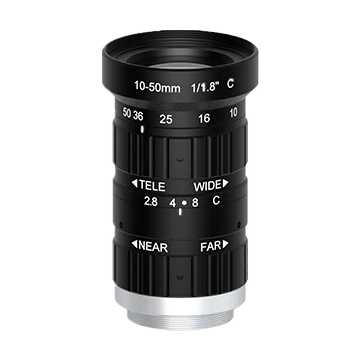

10-50mm, F2.8, 1/1.8", 6 MP, C-mount lens (LS-HV1050M-6MP)
Model LS-HV1050M-6MP
10-50mm, F2.8, 1/1.8", 6 MP, C-mount lens. High resolution with high overall image sharpness Wide focus range covering 10 to 50 mm
Features
- High resolution with high overall image sharpness
- Wide focus range covering 10 to 50 mm
- Low distortion for improved measurement accuracy
- Small CRA and high relative illumination
Specifications
| Model | LS-HV1050M-6MP |
|---|---|
| Focal length | 10(W)~ 50(T)mm |
| F-number | F2.8~C |
| Image size | Φ9 mm(1/1.8'') |
| Distortion | W:-1.3%; T:-0.09% |
| Minimum object distance | W:0.1 m; T:0.3 m |
| Field of view | W:D(8.96 mm):44.2°, H(7.37 mm):36.8°, V(4.92 mm):24.8°; T:D(8.96 mm):11.1°, H(7.37 mm):9.3°, V(4.92 mm):6.2° |
| Iris control | Manual |
| Focus control | Manual |
| Zoom control | Manual |
| Filter thread | M35.5×0.5 |
| Connector type | C-Mount |
| Flange back length | 17.526 mm |
| Dimension | Φ37×65 mm |
| Weight | 125 g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.28 kg |
