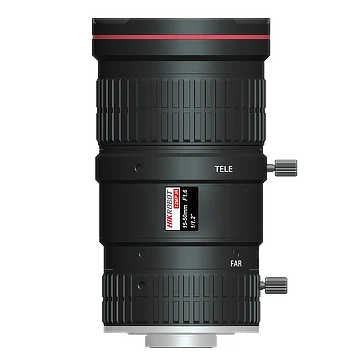

15-50mm, F1.6, 1/1.2", 12 MP, CS-mount lens (LS-MV1550-12MPIR)
Model LS-MV1550-12MPIR
15-50mm, F1.6, 1/1.2", 12 MP, CS-mount lens. Large aperture F1.6 Zoom range 15–50 mm
Features
- Large aperture F1.6
- Zoom range 15–50 mm
- Coating covers the infrared band with high infrared transmittance
Specifications
| Model | LS-MV1550-12MPIR |
|---|---|
| Focal length | 15(W) ~ 50(T) mm |
| F-number | F1.6 |
| Image size | Φ13 mm(1/1.2'') |
| Distortion | W:-11%; T:-2.2% |
| Minimum object distance | W:1 m; T:5 m |
| Field of view | W:D(12.78 mm):49.7°, H(11.14 mm):42.75°, V(6.26 mm):23.36°; T:D(12.78 mm):15.8°, H(11.14 mm):13.7°, V(6.26mm):7.7° |
| Iris control | Fixed |
| Focus control | Manual |
| Zoom control | Manual |
| Connector type | CS-Mount |
| Flange back length | 12.5 mm |
| Dimension | Φ63 × 111.8 mm |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.31 kg |
