Machine vision lenses

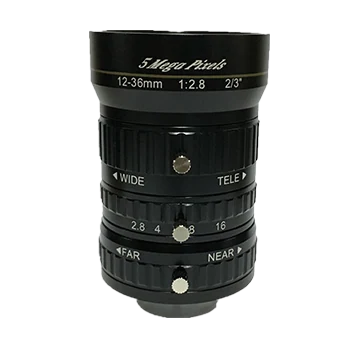

12-36mm, F2.8, 2/3", 5 MP, C-mount lens (LS-MV1236M-5MP)
Model LS-MV1236M-5MP
12-36mm, F2.8, 2/3", 5 MP, C-mount lens. High resolution, high contrast Low distortion for improved measurement accuracy
Features
- High resolution, high contrast
- Low distortion for improved measurement accuracy
- Multi-layer coating effectively suppresses stray light and ghosting
- Compact design with screw-locked focus and iris
Specifications
| Model | LS-MV1236M-5MP |
|---|---|
| Focal length | 12(W)~ 36(T)mm |
| F-number | F2.8 ~ F16 |
| Image size | Φ11 mm(2/3'') |
| Distortion | W:-3.4%; T:-1.4% |
| Minimum object distance | W:0.15 m; T:0.45 m |
| Field of view | W:D(11 mm):50.8°, H(8.8 mm):41.3°, V(6.6 mm):31.3°; T:D(11 mm):17.2°, H(8.8 mm):13.8°, V(6.6 mm):10.5° |
| Iris control | Manual |
| Focus control | Manual |
| Zoom control | Manual |
| Filter thread | M40.5×0.5 |
| Connector type | C-Mount |
| Flange back length | 17.526 mm |
| Dimension | Φ45×63.9 mm |
| Weight | 188 g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.36 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Zoom Lens Series series
