Machine vision lenses

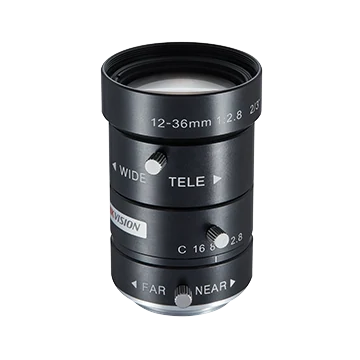

12-36mm, F2.8, 2/3", 1 MP, C-mount lens (LS-MV1236M-MP)
Model LS-MV1236M-MP
12-36mm, F2.8, 2/3", 1 MP, C-mount lens. For megapixel cameras Low distortion for improved measurement accuracy
Features
- For megapixel cameras
- Low distortion for improved measurement accuracy
- Compact design
- Screw-locked focus and iris
Specifications
| Model | LS-MV1236M-MP |
|---|---|
| Focal length | 12(W)~ 36(T)mm |
| F-number | F2.8~C |
| Image size | Φ11 mm(2/3'') |
| Distortion | W:-3.43%; T:2.3% |
| Minimum object distance | W:0.15 m; T:0.5 m |
| Field of view | W:D(11 mm):50.8°, H(8.8 mm):41.3°, V(6.6 mm):31.2°; T:D(11 mm):17.0°, H(8.8 mm):13.8°, V(6.6 mm):10.4° |
| Iris control | Manual |
| Focus control | Manual |
| Zoom control | Manual |
| Filter thread | M35.5×0.5 |
| Connector type | C-Mount |
| Flange back length | 17.526 mm |
| Dimension | Φ37.5×54 mm |
| Weight | 103 g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.24 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Zoom Lens Series series
