Machine vision lenses

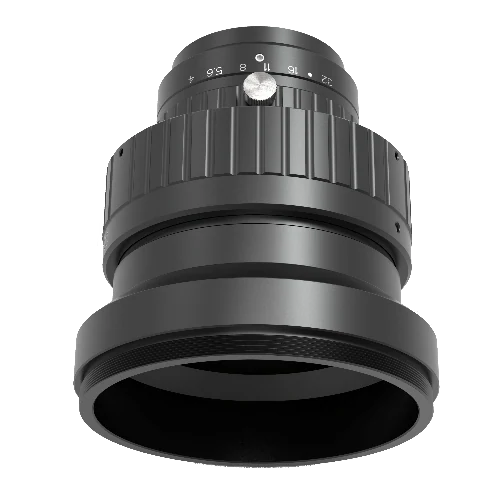

60mm, F4.0, Large image circle φ64 mm, Recommended magnification 0.117-0.33x, M72-mount lens (LS-LF6040M-0167V-M72)
Model LS-LF6040M-0167V-M72
60mm, F4.0, Large image circle φ64 mm, Recommended magnification 0.117-0.33x, M72-mount lens. High-precision lens for 8K7U line-scan cameras Excellent sharpness uniformity, large aperture, low distortion
Features
- High-precision lens for 8K7U line-scan cameras
- Excellent sharpness uniformity, large aperture, low distortion
- Very high resolving power even at maximum aperture F4
- Maximum image circle Φ64 mm
Specifications
| Model | LS-LF6040M-0167V-M72 |
|---|---|
| Focal length | 60 mm |
| F-number | F4.0 ~ F32 |
| Image size | Φ64 mm |
| Optical distortion | 0.19% |
| Magnification range | 0.33x ~ 0.167x ~ 0.117x |
| Working distance range | 219 ~ 404 ~ 563 ±5 mm |
| Conjugate distance range | 321 ~ 496 ~ 645 ±9 mm |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M37 × P0.75 |
| Connector type | M72 × P0.75 |
| Flange back length | 12 mm |
| Dimension | Φ74.8 × 97.9 mm |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.31 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the LF-M72 series lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-LF3040M-005-M72 | $219.00 | 5 in stock | View | |
| LS-LF4040M-01-M72 | $229.00 | 4 in stock | View | |
| LS-LF6040M-0168V-M72 | $839.00 | 3 in stock | View | |
| LS-LF6040M-013-M72 | $839.00 | 2 in stock | View | |
| LS-LF8040M-021V-M72 | $969.00 | 2 in stock | View |
