Machine vision lenses

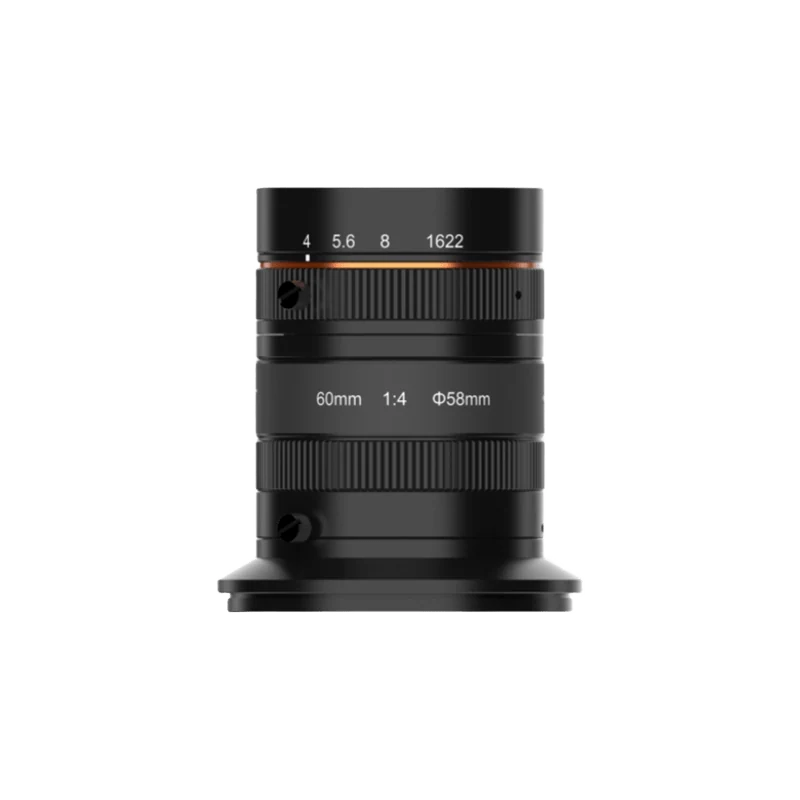

60mm, F4.0, Large image circle φ58 mm, Recommended magnification 0.07-0.37x, M72-mount lens (LS-LF6040M-013-M72)
Model LS-LF6040M-013-M72
60mm, F4.0, Large image circle φ58 mm, Recommended magnification 0.07-0.37x, M72-mount lens. High-precision lens for 8K7U line-scan cameras Excellent sharpness uniformity across the image, low distortion
Features
- High-precision lens for 8K7U line-scan cameras
- Excellent sharpness uniformity across the image, low distortion
- Very high resolving power even at maximum aperture F4
- Maximum image circle Φ58 mm
Specifications
| Model | LS-LF6040M-013-M72 |
|---|---|
| Focal length | 60 mm |
| F-number | F4.0 ~ F22 |
| Image size | Φ58 mm |
| Optical distortion | -0.45% |
| Magnification range | 0.37x ~ 0.13x ~ 0.07x ~ 0.001x |
| Working distance range | 200 ~ 500 ~ 900 ~ ∞ ±5 mm |
| Conjugate distance range | 308 ~ 594 ~ 990 ~ ∞ ±9 mm |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M58 × P0.75 |
| Connector type | M72 × P0.75 |
| Flange back length | 12 mm |
| Dimension | Φ76 × 84.07 ~ 107.02 mm |
| Weight | 495.8 g |
| Temperature | -10 ~ 50 °C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.79 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the LF-M72 series lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-LF3040M-005-M72 | $219.00 | 5 in stock | View | |
| LS-LF4040M-01-M72 | $229.00 | 4 in stock | View | |
| LS-LF6040M-0168V-M72 | $839.00 | 3 in stock | View | |
| LS-LF6040M-0167V-M72 | $839.00 | 4 in stock | View | |
| LS-LF8040M-021V-M72 | $969.00 | 2 in stock | View |
