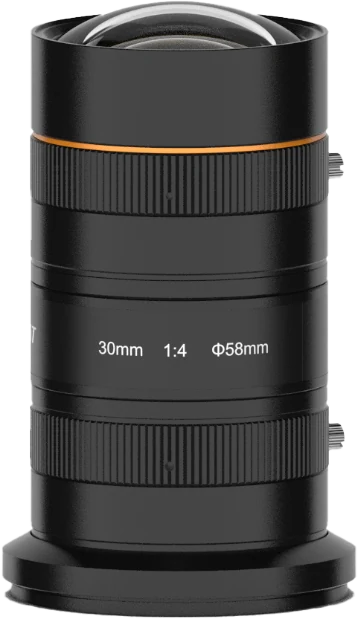

30mm, F4.0, Image Size φ58mm, Recommended Magnification 0.031-0.145x, M72 Mount (LS-LF3040M-005-M72)
Model LS-LF3040M-005-M72
30mm, F4.0, Image Size φ58mm, Recommended Magnification 0.031-0.145x, M72 Mount. Adopts high-precision lens for 8k 7 μm line scan cameras. Provides excellent consistency of image clarify with high resolution.
Features
- Adopts high-precision lens for 8k 7 μm line scan cameras.
- Provides excellent consistency of image clarify with high resolution.
- Provides ultra-high image resolution at the maximum iris of F4.0.
- Provides maximum image size Φ58 mm.
Specifications
| Model | LS-LF3040M-005-M72 |
|---|---|
| Focal length | 30 mm |
| F-number | F4.0 to F16 |
| Image size | Φ58 mm |
| Optical distortion | –0.84% |
| Magnification range | 0.145 x to 0.031 x |
| Working distance range | 205 mm to 1000 mm (tolerance: ± 5 mm) |
| Conjugate distance range | 345 mm to 1137 mm (tolerance: ± 9 mm) |
| Iris control | Manual |
| Focus control | Manual |
| Mount | M72 × P0.75 |
| Flange back length | 12 mm |
| Dimension | Φ76 mm × 123.93 mm (Φ3.0" × 4.9") |
| Weight | 797 g (1.8 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 1.22 kg |
