Machine vision lenses

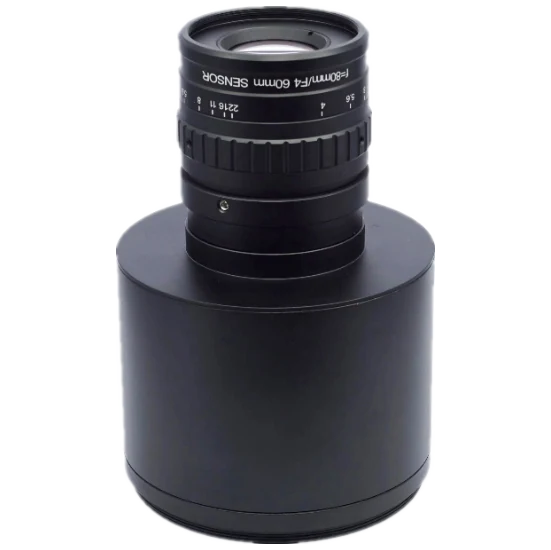

80mm, F4.0, Image Size φ60mm, Recommended Magnification 0.12~0.31X, M72 Mount (LS-LF8040M-021V-M72)
Model LS-LF8040M-021V-M72
80mm, F4.0, Image Size φ60mm, Recommended Magnification 0.12~0.31X, M72 Mount. High precision lens for 8K7U line array cameras Excellent picture sharpness consistency
Features
- High precision lens for 8K7U line array cameras
- Excellent picture sharpness consistency
- Superior resolution at maximum aperture of F4
- Maximum image size Φ60mm
Specifications
| Model | LS-LF8040M-021V-M72 |
|---|---|
| Focal length | 80 mm |
| F-number | F4.0 to F22 |
| Image size | Ø60 mm |
| Optical distortion | –0.11% |
| Magnification range | 0.12x to 0.21x to 0.31x |
| Working distance range | 750 mm to 450 mm to 325 mm ± 9 mm |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M39 × 0.5 |
| Mount | M72 × P0.75 |
| Flange back length | 12 mm |
| Dimension | Ø45 mm × 108.28 mm to 116.28 mm (Ø1.77'' × 4.26'' to 4.58'') |
| Weight | 321.2 g (0.708 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.55 kg |
