Machine vision lenses

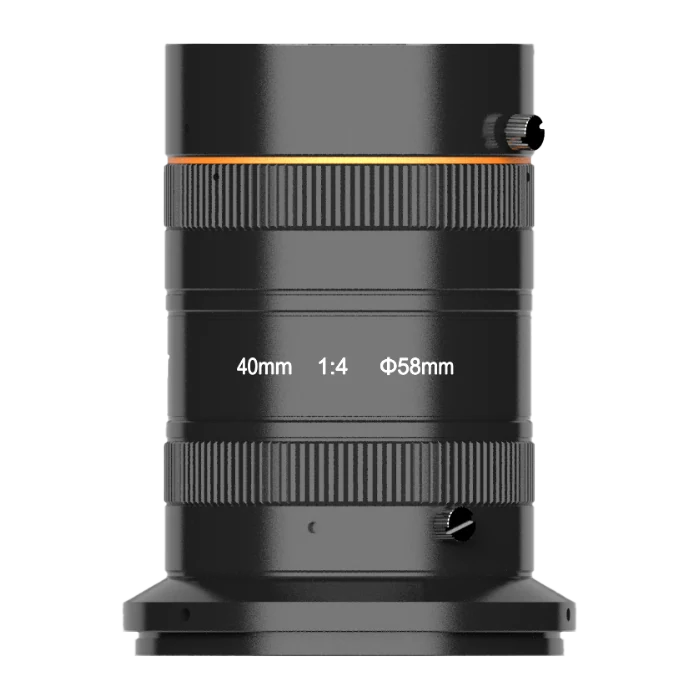

40mm, F4.0, Image Size φ64mm, Recommended Magnification 0.05-0.21x, M72 Mount (LS-LF4040M-01-M72)
Model LS-LF4040M-01-M72
40mm, F4.0, Image Size φ64mm, Recommended Magnification 0.05-0.21x, M72 Mount. Adopts high-precision lens for 8k 7 μm line scan cameras. Provides excellent picture sharpness consistency, low distortion.
Features
- Adopts high-precision lens for 8k 7 μm line scan cameras.
- Provides excellent picture sharpness consistency, low distortion.
- Provides superior resolution at maximum aperture of F4.
- Provides maximum image size Φ58 mm.
Specifications
| Model | LS-LF4040M-01-M72 |
|---|---|
| Focal length | 40 mm |
| F-number | F4.0 to F22 |
| Image size | Φ58 mm |
| Optical distortion | –0.42% |
| Magnification range | 0.21 x to 0.001 x |
| Working distance range | 200 mm to inf mm (tolerance: ±5 mm) |
| Conjugate distance range | 310 mm to inf mm (tolerance: ±9 mm) |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M60 × P0.75 |
| Mount | M72 × P0.75 |
| Flange back length | 12 mm |
| Dimension | Φ76 mm × 97.9 mm (Φ3.0'' × 3.9") |
| Weight | 625 g (24.6 Ib.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.98 kg |
