Home / Lenses / Telecentric lenses / K Series Object-Side Telecentric lenses

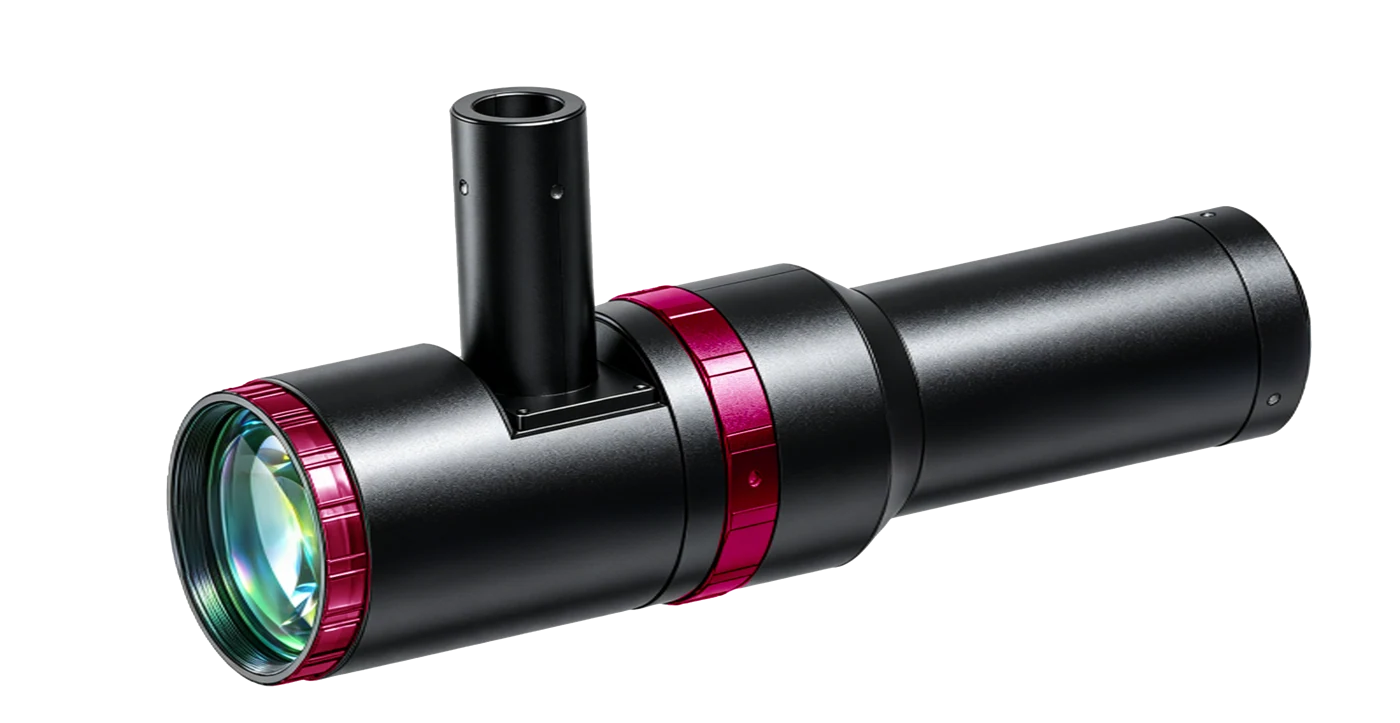

Object-Side Telecentric Lens, 4x, 60 mm WD, 1.2" (LS-KT-4-60C-G)

Telecentric lenses

Object-Side Telecentric Lens, 4x, 60 mm WD, 1.2" (LS-KT-4-60C-G)

Model LS-KT-4-60C-G

Object-Side Telecentric Lens, 4x, 60 mm WD, 1.2". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.2"

$739.00 USDIn stock · 5 available

Inventory updated Oct 16, 2026

0.66 kg shipping weight · Ships in 2-3 weeks

Need volume or project pricing?

Build a system with this lens → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-KT-4-60C-G3D model (STEP, ZIP) - LS-KT-4-60C-G

Features

  • Excellent image quality with an optimized fixed-magnification design
  • Supports cameras up to 1.2"

Specifications

ModelLS-KT-4-60C-G
Magnification4
Working distance60 mm
Image size1.2"
F-numberF9.9-F32
Depth of field0.05~0.16 mm
Distortion≤ 0.005%
Object-side resolution1.7-5.4 μm
Object-side telecentricity≤ 0.12°
Connector typeC-Mount
Coaxial lightNot supported
Dimension195.6 mm × Φ50 mm
Temperature-10~50°C
CertificationRoHS2.0
Shipping weight (estimated)0.66 kg
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the K Series Object-Side Telecentric lenses series

ModelSizePriceAvailability
LS-KT-25-1002.5x, 100 mm WD, 1.1" $629.00 5 in stockView
LS-KY-2-210C2x, 210 mm WD, 1" $649.00 5 in stockView
LS-KY-2-2102x, 210 mm WD, 1" $649.00 4 in stockView
LS-KS-1-2211x, 221 mm WD, 1.1" $659.00 4 in stockView
LS-KY-1-3701x, 370 mm WD, 1.1" $689.00 3 in stockView
LS-KT-1-180C1x, 180 mm WD, 1.1" $689.00 4 in stockView
LS-KS-1-3751x, 375 mm WD, 1.1" $689.00 3 in stockView
LS-KS-08-4210.8x, 421 mm WD, 1.1" $689.00 3 in stockView
LS-KT-12-1021.2x, 102 mm WD, 1.1" $709.00 5 in stockView
LS-KT-13-981.3x, 98 mm WD, 1.1" $709.00 4 in stockView
LS-KT-1-110C-V31x, 110 mm WD, 1.1" $739.00 4 in stockView
LS-KT-1-110-V31x, 110 mm WD, 1.1" $739.00 3 in stockView
LS-KS-08-1350.8x, 135 mm WD, 1.2" $739.00 4 in stockView
LS-KY-07-1350.7x, 135 mm WD, 1" $759.00 2 in stockView
LS-KY-08-2000.8x, 200 mm WD, 1" $789.00 2 in stockView
LS-KY-065-3600.65x, 360 mm WD, 4/3" $789.00 4 in stockView
LS-KT-08-1800.8x, 180 mm WD, 1.1" $789.00 3 in stockView
LS-KT-08-110-V30.8x, 110 mm WD, 1.1" $789.00 5 in stockView
LS-KT-08-110C-V30.8x, 110 mm WD, 1.1" $789.00 3 in stockView
LS-KT-08-180C0.8x, 180 mm WD, 1.1" $789.00 3 in stockView
LS-KY-05-2400.5x, 240 mm WD, 1" $799.00 5 in stockView
LS-KY-05-3600.5x, 360 mm WD, 4/3" $829.00 3 in stockView
LS-KY-04-5500.4x, 550 mm WD, 1.1" $829.00 2 in stockView
LS-KT10-05-1700.5x, 170 mm WD, 1" $829.00 2 in stockView

See all 123 models in the K Series Object-Side Telecentric lenses series
