Telecentric lenses

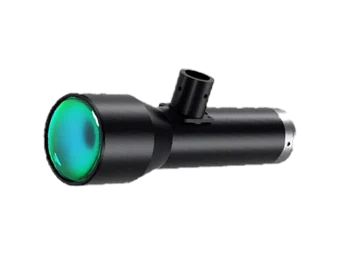

Object-Side Telecentric Lens, 1x, 180 mm WD, 1.1", coaxial light port (LS-KT-1-180C)
Model LS-KT-1-180C
Object-Side Telecentric Lens, 1x, 180 mm WD, 1.1", coaxial light port. Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.1"
Features
- Excellent image quality with an optimized fixed-magnification design
- Supports cameras up to 1.1"
Specifications
| Model | LS-KT-1-180C |
|---|---|
| Magnification | 1 |
| Working distance | 180 mm |
| Image size | 1.1" |
| F-number | F8 |
| Depth of field | 0.6 mm |
| Distortion | ≤ 0.01% |
| Object-side resolution | 5.4 μm |
| Object-side telecentricity | ≤ 0.08° |
| Connector type | C-Mount |
| Coaxial light | Supported |
| Dimension | 179.1 mm × Φ48 mm |
| Temperature | -10~50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.66 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the K Series Object-Side Telecentric lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-KT-4-108 | 4x, 108 mm WD, 1.1" | $599.00 | 2 in stock | View |
| LS-KT-4-108C | 4x, 108 mm WD, 1.1" | $599.00 | 2 in stock | View |
| LS-KT-4-100C | 4x, 100 mm WD, 1.1" | $599.00 | 3 in stock | View |
| LS-KT-4-100 | 4x, 100 mm WD, 1.1" | $599.00 | 2 in stock | View |
| LS-KT-2-110 | 2x, 110 mm WD, 1.1" | $609.00 | 4 in stock | View |
| LS-KT-2-110C | 2x, 110 mm WD, 1.1" | $609.00 | 2 in stock | View |
| LS-KT-15-110 | 1.5x, 110 mm WD, 1.1" | $629.00 | 5 in stock | View |
| LS-KT-25-100 | 2.5x, 100 mm WD, 1.1" | $629.00 | 5 in stock | View |
| LS-KY-2-210C | 2x, 210 mm WD, 1" | $649.00 | 5 in stock | View |
| LS-KY-2-210 | 2x, 210 mm WD, 1" | $649.00 | 4 in stock | View |
| LS-KS-1-221 | 1x, 221 mm WD, 1.1" | $659.00 | 4 in stock | View |
| LS-KY-1-370 | 1x, 370 mm WD, 1.1" | $689.00 | 3 in stock | View |
| LS-KS-1-375 | 1x, 375 mm WD, 1.1" | $689.00 | 3 in stock | View |
| LS-KS-08-421 | 0.8x, 421 mm WD, 1.1" | $689.00 | 3 in stock | View |
| LS-KT-12-102 | 1.2x, 102 mm WD, 1.1" | $709.00 | 5 in stock | View |
| LS-KT-13-98 | 1.3x, 98 mm WD, 1.1" | $709.00 | 4 in stock | View |
| LS-KT-1-110C-V3 | 1x, 110 mm WD, 1.1" | $739.00 | 4 in stock | View |
| LS-KT-1-110-V3 | 1x, 110 mm WD, 1.1" | $739.00 | 3 in stock | View |
| LS-KT-4-60C-G | 4x, 60 mm WD, 1.2" | $739.00 | 5 in stock | View |
| LS-KS-08-135 | 0.8x, 135 mm WD, 1.2" | $739.00 | 4 in stock | View |
| LS-KY-07-135 | 0.7x, 135 mm WD, 1" | $759.00 | 2 in stock | View |
| LS-KY-08-200 | 0.8x, 200 mm WD, 1" | $789.00 | 2 in stock | View |
| LS-KY-065-360 | 0.65x, 360 mm WD, 4/3" | $789.00 | 4 in stock | View |
| LS-KT-08-180 | 0.8x, 180 mm WD, 1.1" | $789.00 | 3 in stock | View |
See all 123 models in the K Series Object-Side Telecentric lenses series
