Home / Lenses / Telecentric lenses / K Series Object-Side Telecentric lenses

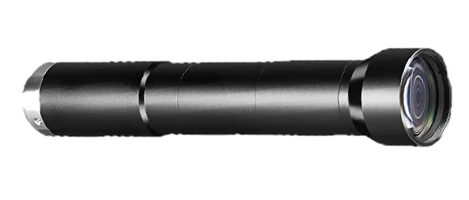

Object-Side Telecentric Lens, 2.5x, 100 mm WD, 1.1" (LS-KT-25-100)

Telecentric lenses

Object-Side Telecentric Lens, 2.5x, 100 mm WD, 1.1" (LS-KT-25-100)

Model LS-KT-25-100

Object-Side Telecentric Lens, 2.5x, 100 mm WD, 1.1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.1"

$629.00 USDIn stock · 5 available

Inventory updated Oct 16, 2026

0.66 kg shipping weight · Ships in 2-3 weeks

Need volume or project pricing?

Build a system with this lens → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-KT-25-1003D model (STEP, ZIP) - LS-KT-25-100

Features

  • Excellent image quality with an optimized fixed-magnification design
  • Supports cameras up to 1.1"

Specifications

ModelLS-KT-25-100
Magnification2.5
Working distance100 mm
Image size1.1"
F-numberF13.4
Depth of field±0.09 mm @F13.4
Distortion≤ 0.1%
Object-side resolution3.6 μm
Object-side telecentricity≤ 0.05°
Connector typeC-Mount
Coaxial lightNot supported
Dimension150.3 mm × Φ35 mm
Temperature-10~50°C
CertificationRoHS2.0
Shipping weight (estimated)0.66 kg
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the K Series Object-Side Telecentric lenses series

ModelSizePriceAvailability
LS-KT-8-108C8x, 108 mm WD, 1.1" $579.00 4 in stockView
LS-KT-3-1103x, 110 mm WD, 1.1" $589.00 4 in stockView
LS-KT-3-110C3x, 110 mm WD, 1.1" $589.00 4 in stockView
LS-KT-6-1086x, 108 mm WD, 1.1" $589.00 4 in stockView
LS-KT-5-1025x, 102 mm WD, 1.1" $589.00 5 in stockView
LS-KT-4-1084x, 108 mm WD, 1.1" $599.00 2 in stockView
LS-KT-4-108C4x, 108 mm WD, 1.1" $599.00 2 in stockView
LS-KT-4-100C4x, 100 mm WD, 1.1" $599.00 3 in stockView
LS-KT-4-1004x, 100 mm WD, 1.1" $599.00 2 in stockView
LS-KT-2-1102x, 110 mm WD, 1.1" $609.00 4 in stockView
LS-KT-2-110C2x, 110 mm WD, 1.1" $609.00 2 in stockView
LS-KT-15-1101.5x, 110 mm WD, 1.1" $629.00 5 in stockView
LS-KY-2-210C2x, 210 mm WD, 1" $649.00 5 in stockView
LS-KY-2-2102x, 210 mm WD, 1" $649.00 4 in stockView
LS-KS-1-2211x, 221 mm WD, 1.1" $659.00 4 in stockView
LS-KY-1-3701x, 370 mm WD, 1.1" $689.00 3 in stockView
LS-KT-1-180C1x, 180 mm WD, 1.1" $689.00 4 in stockView
LS-KS-1-3751x, 375 mm WD, 1.1" $689.00 3 in stockView
LS-KS-08-4210.8x, 421 mm WD, 1.1" $689.00 3 in stockView
LS-KT-12-1021.2x, 102 mm WD, 1.1" $709.00 5 in stockView
LS-KT-13-981.3x, 98 mm WD, 1.1" $709.00 4 in stockView
LS-KT-1-110C-V31x, 110 mm WD, 1.1" $739.00 4 in stockView
LS-KT-1-110-V31x, 110 mm WD, 1.1" $739.00 3 in stockView
LS-KT-4-60C-G4x, 60 mm WD, 1.2" $739.00 5 in stockView

See all 123 models in the K Series Object-Side Telecentric lenses series
