Telecentric lenses

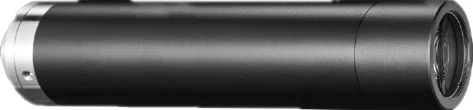

Object-Side Telecentric Lens, 0.5x, 240 mm WD, 1" (LS-KY-05-240)
Model LS-KY-05-240
Object-Side Telecentric Lens, 0.5x, 240 mm WD, 1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1"
Features
- Excellent image quality with an optimized fixed-magnification design
- Supports cameras up to 1"
Specifications
| Model | LS-KY-05-240 |
|---|---|
| Magnification | 0.5 |
| Working distance | 240 mm |
| Image size | 1" |
| F-number | F12.5 |
| Depth of field | 4 mm |
| Distortion | ≤ 0.1% |
| Object-side resolution | 16.7 μm |
| Object-side telecentricity | Non-telecentric |
| Connector type | C-Mount |
| Coaxial light | Not supported |
| Dimension | 174.4 mm × Φ30 mm |
| Temperature | -10~50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.66 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the K Series Object-Side Telecentric lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-KT-13-98 | 1.3x, 98 mm WD, 1.1" | $709.00 | 4 in stock | View |
| LS-KT-1-110C-V3 | 1x, 110 mm WD, 1.1" | $739.00 | 4 in stock | View |
| LS-KT-1-110-V3 | 1x, 110 mm WD, 1.1" | $739.00 | 3 in stock | View |
| LS-KT-4-60C-G | 4x, 60 mm WD, 1.2" | $739.00 | 5 in stock | View |
| LS-KS-08-135 | 0.8x, 135 mm WD, 1.2" | $739.00 | 4 in stock | View |
| LS-KY-07-135 | 0.7x, 135 mm WD, 1" | $759.00 | 2 in stock | View |
| LS-KY-08-200 | 0.8x, 200 mm WD, 1" | $789.00 | 2 in stock | View |
| LS-KY-065-360 | 0.65x, 360 mm WD, 4/3" | $789.00 | 4 in stock | View |
| LS-KT-08-180 | 0.8x, 180 mm WD, 1.1" | $789.00 | 3 in stock | View |
| LS-KT-08-110-V3 | 0.8x, 110 mm WD, 1.1" | $789.00 | 5 in stock | View |
| LS-KT-08-110C-V3 | 0.8x, 110 mm WD, 1.1" | $789.00 | 3 in stock | View |
| LS-KT-08-180C | 0.8x, 180 mm WD, 1.1" | $789.00 | 3 in stock | View |
| LS-KY-05-360 | 0.5x, 360 mm WD, 4/3" | $829.00 | 3 in stock | View |
| LS-KY-04-550 | 0.4x, 550 mm WD, 1.1" | $829.00 | 2 in stock | View |
| LS-KT10-05-170 | 0.5x, 170 mm WD, 1" | $829.00 | 2 in stock | View |
| LS-KT-05-180 | 0.5x, 180 mm WD, 1.1" | $829.00 | 3 in stock | View |
| LS-KS-05-363 | 0.5x, 363 mm WD, 1.1" | $829.00 | 3 in stock | View |
| LS-KS-045-610 | 0.45x, 610 mm WD, 1.1" | $829.00 | 4 in stock | View |
| LS-KS-05-316 | 0.5x, 316 mm WD, 1.2" | $829.00 | 5 in stock | View |
| LS-KT-063-150C | 0.63x, 150 mm WD, 1.1" | $869.00 | 3 in stock | View |
| LS-KT-05-110-V3 | 0.5x, 110 mm WD, 1.1" | $929.00 | 3 in stock | View |
| LS-KT-05-110C-V3 | 0.5x, 110 mm WD, 1.1" | $929.00 | 4 in stock | View |
| LS-KT-05-110-V3-G | 0.5x, 110 mm WD, 1.1" | $929.00 | 4 in stock | View |
| LS-KY-03-193 | 0.3x, 193 mm WD, 1" | $969.00 | 5 in stock | View |
See all 123 models in the K Series Object-Side Telecentric lenses series
