Home / Lenses / Telecentric lenses / K Series Object-Side Telecentric lenses

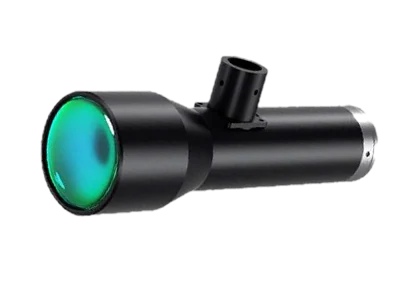

Object-Side Telecentric Lens, 0.8x, 180 mm WD, 1.1" (LS-KT-08-180C)

Telecentric lenses

Object-Side Telecentric Lens, 0.8x, 180 mm WD, 1.1" (LS-KT-08-180C)

Model LS-KT-08-180C

Object-Side Telecentric Lens, 0.8x, 180 mm WD, 1.1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.1"

$789.00 USDIn stock · 3 available

Inventory updated Oct 16, 2026

0.66 kg shipping weight · Ships in 2-3 weeks

Need volume or project pricing?

Build a system with this lens → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-KT-08-180C3D model (STEP, ZIP) - LS-KT-08-180C

Features

  • Excellent image quality with an optimized fixed-magnification design
  • Supports cameras up to 1.1"

Specifications

ModelLS-KT-08-180C
Magnification0.8
Working distance180 mm
Image size1.1"
F-numberF8
Depth of field1 mm
Distortion≤ 0.04%
Object-side resolution5.8 μm
Object-side telecentricity≤ 0.08°
Connector typeC-Mount
Coaxial lightNot supported
Dimension155.0 mm × Φ48 mm
Temperature-10~50°C
CertificationRoHS2.0
Shipping weight (estimated)0.66 kg
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the K Series Object-Side Telecentric lenses series

ModelSizePriceAvailability
LS-KT-12-1021.2x, 102 mm WD, 1.1" $709.00 5 in stockView
LS-KT-13-981.3x, 98 mm WD, 1.1" $709.00 4 in stockView
LS-KT-1-110C-V31x, 110 mm WD, 1.1" $739.00 4 in stockView
LS-KT-1-110-V31x, 110 mm WD, 1.1" $739.00 3 in stockView
LS-KT-4-60C-G4x, 60 mm WD, 1.2" $739.00 5 in stockView
LS-KS-08-1350.8x, 135 mm WD, 1.2" $739.00 4 in stockView
LS-KY-07-1350.7x, 135 mm WD, 1" $759.00 2 in stockView
LS-KY-08-2000.8x, 200 mm WD, 1" $789.00 2 in stockView
LS-KY-065-3600.65x, 360 mm WD, 4/3" $789.00 4 in stockView
LS-KT-08-1800.8x, 180 mm WD, 1.1" $789.00 3 in stockView
LS-KT-08-110-V30.8x, 110 mm WD, 1.1" $789.00 5 in stockView
LS-KT-08-110C-V30.8x, 110 mm WD, 1.1" $789.00 3 in stockView
LS-KY-05-2400.5x, 240 mm WD, 1" $799.00 5 in stockView
LS-KY-05-3600.5x, 360 mm WD, 4/3" $829.00 3 in stockView
LS-KY-04-5500.4x, 550 mm WD, 1.1" $829.00 2 in stockView
LS-KT10-05-1700.5x, 170 mm WD, 1" $829.00 2 in stockView
LS-KT-05-1800.5x, 180 mm WD, 1.1" $829.00 3 in stockView
LS-KS-05-3630.5x, 363 mm WD, 1.1" $829.00 3 in stockView
LS-KS-045-6100.45x, 610 mm WD, 1.1" $829.00 4 in stockView
LS-KS-05-3160.5x, 316 mm WD, 1.2" $829.00 5 in stockView
LS-KT-063-150C0.63x, 150 mm WD, 1.1" $869.00 3 in stockView
LS-KT-05-110-V30.5x, 110 mm WD, 1.1" $929.00 3 in stockView
LS-KT-05-110C-V30.5x, 110 mm WD, 1.1" $929.00 4 in stockView
LS-KT-05-110-V3-G0.5x, 110 mm WD, 1.1" $929.00 4 in stockView

See all 123 models in the K Series Object-Side Telecentric lenses series
