Machine vision lenses

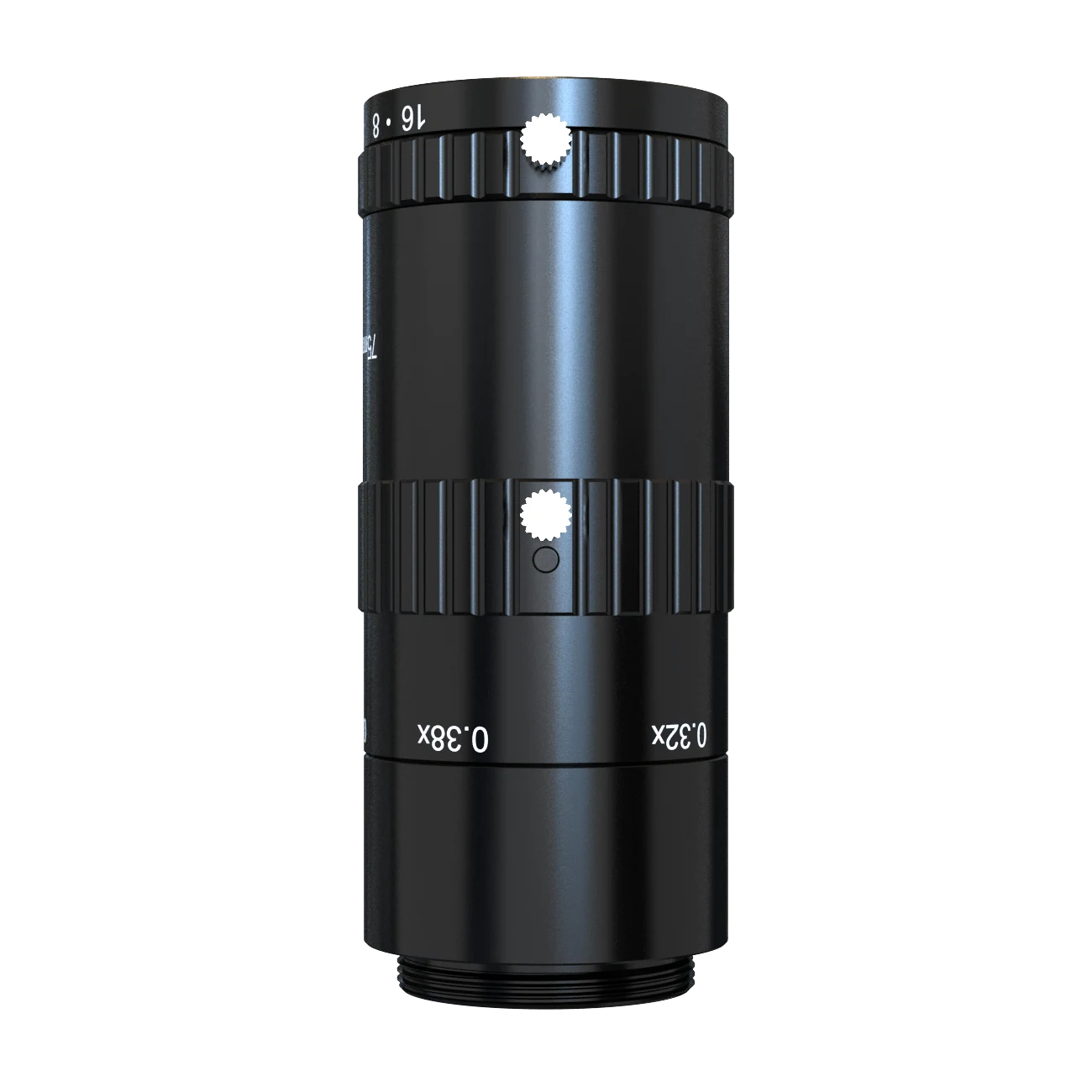

75mm, F3.8, 1.1", C-mount, Macro lens (257 mm (-0.38X) to 471 mm (-0.18X)) (LS-KF7538M-ML)
Model LS-KF7538M-ML
75mm, F3.8, 1.1", C-mount, Macro lens (257 mm (-0.38X) to 471 mm (-0.18X)). Sharp macro imaging with high image uniformity Ultra-low distortion and high relative illumination
Features
- Sharp macro imaging with high image uniformity
- Ultra-low distortion and high relative illumination
- Adjustable aperture, F3.8
- Compact size, maximum sensor format 1.1”
Specifications
| Model | LS-KF7538M-ML |
|---|---|
| Focal length | 75 mm |
| F-number | F3.8 ~ F16 |
| Image size | Φ17.6 mm(1.1”) |
| TV Distortion | 0.05% |
| Magnification range | 0.38x ~ 0.25x ~ 0.18x |
| Working distance range | 257 ~ 357 ~ 471 mm |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M27 × P0.5 |
| Connector type | C-Mount |
| Flange back length | 17.526 mm |
| Dimension | Φ32 × 71.2~86.2 mm |
| Weight | 108.2 g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.25 kg |
