Machine vision lenses

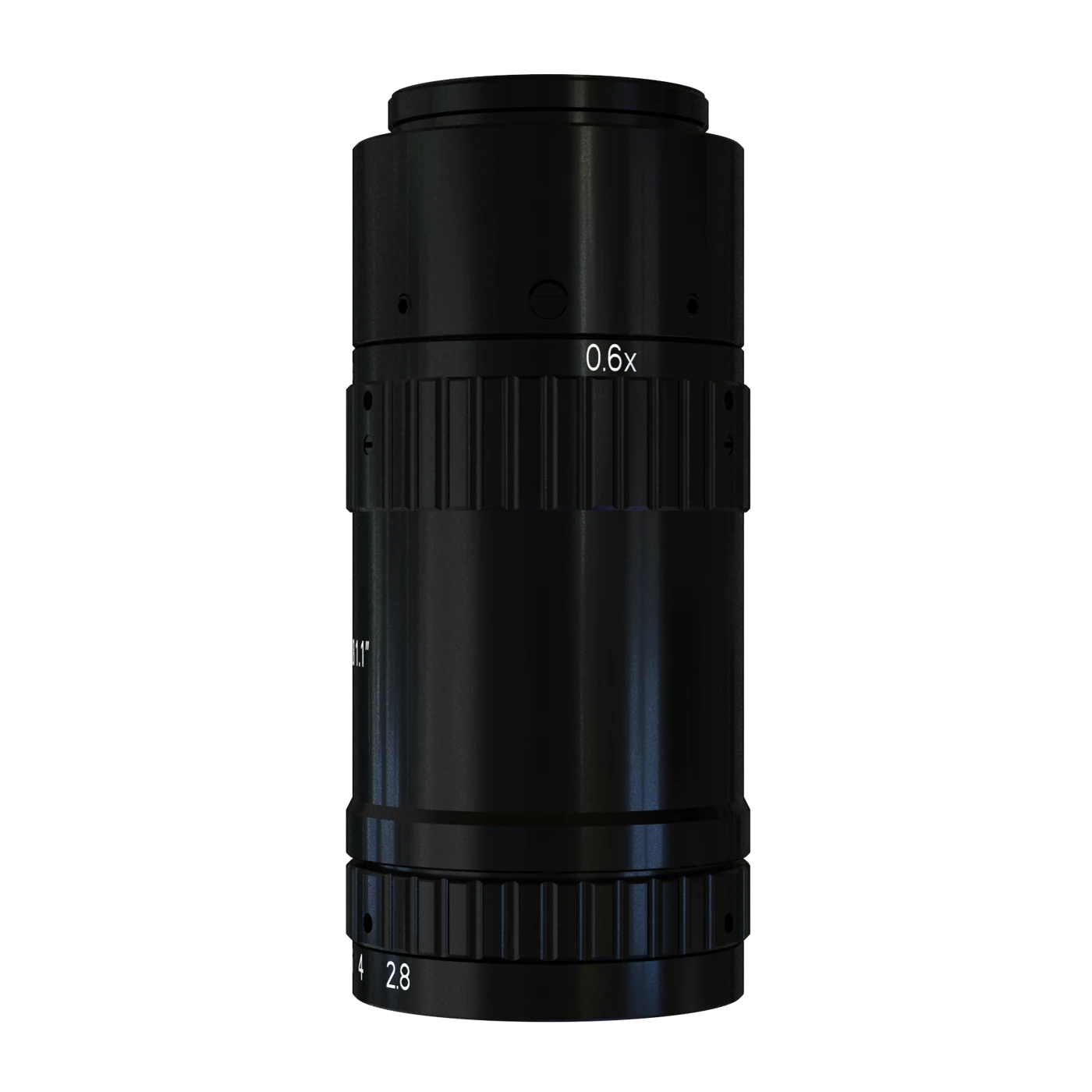

50mm, F2.8, 1.1", C-mount, Macro lens (95.4 mm (-0.8X) to 132.4 mm (-0.5X)) (LS-KF5028M-ML)
Model LS-KF5028M-ML
50mm, F2.8, 1.1", C-mount, Macro lens (95.4 mm (-0.8X) to 132.4 mm (-0.5X)). Sharp macro imaging with high image uniformity Ultra-low distortion and high relative illumination
Features
- Sharp macro imaging with high image uniformity
- Ultra-low distortion and high relative illumination
- Adjustable aperture, F2.8
- Compact size, maximum sensor format 1.1”
Specifications
| Model | LS-KF5028M-ML |
|---|---|
| Focal length | 50 mm |
| F-number | F2.8 ~ F16 |
| Image size | Φ17.6 mm(1.1”) |
| TV Distortion | 0.05% |
| Magnification range | 0.8x ~ 0.65x ~ 0.5x |
| Working distance range | 95 ~ 109 ~ 132 mm |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M27 × P0.5 |
| Connector type | C-Mount |
| Flange back length | 17.526 mm |
| Dimension | Φ32 × 66.5~83 mm |
| Weight | 113.8 g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.26 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Macro Lens Series series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-KF2528M-ML | $319.00 | 5 in stock | View | |
| LS-KF1628M-ML | $319.00 | 5 in stock | View | |
| LS-KF3528M-ML | $339.00 | 3 in stock | View | |
| LS-MF7538M-ML | $389.00 | 4 in stock | View | |
| LS-KF7538M-ML | $389.00 | 4 in stock | View |
