Machine vision lenses

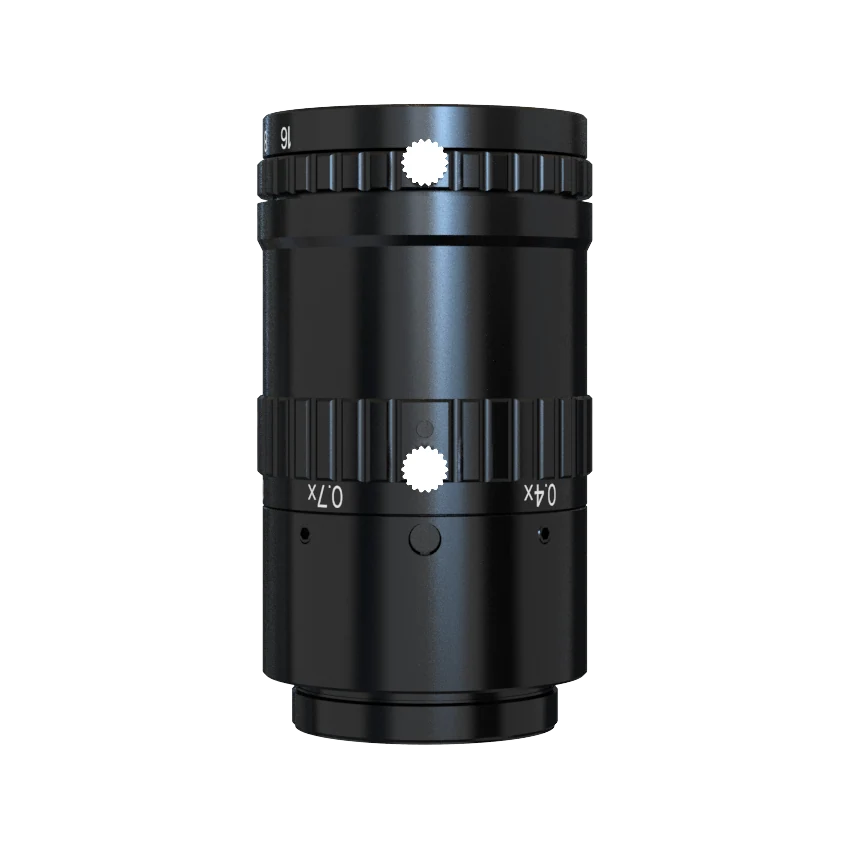

35mm, F2.8, 1.1", C-mount, Macro lens (59 mm (-0.7X) to 150 mm (-0.25X)) (LS-KF3528M-ML)
Model LS-KF3528M-ML
35mm, F2.8, 1.1", C-mount, Macro lens (59 mm (-0.7X) to 150 mm (-0.25X)). Sharp macro imaging with high image uniformity Ultra-low distortion and high relative illumination
Features
- Sharp macro imaging with high image uniformity
- Ultra-low distortion and high relative illumination
- Adjustable aperture, F2.8
- Compact size, maximum sensor format 1.1”
Specifications
| Model | LS-KF3528M-ML |
|---|---|
| Focal length | 35 mm |
| F-number | F2.8 ~ F16 |
| Image size | Φ17.6 mm(1.1”) |
| TV Distortion | 0.05% |
| Magnification range | 0.7x ~ 0.5x ~ 0.25x |
| Working distance range | 59 ~ 78 ~ 150 mm |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M27 × P0.5 |
| Connector type | C-Mount |
| Flange back length | 17.526 mm |
| Dimension | Φ32 × 52.6~69.6 mm |
| Weight | 97.4 g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.24 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Macro Lens Series series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-KF2528M-ML | $319.00 | 5 in stock | View | |
| LS-KF1628M-ML | $319.00 | 5 in stock | View | |
| LS-KF5028M-ML | $359.00 | 3 in stock | View | |
| LS-MF7538M-ML | $389.00 | 4 in stock | View | |
| LS-KF7538M-ML | $389.00 | 4 in stock | View |
