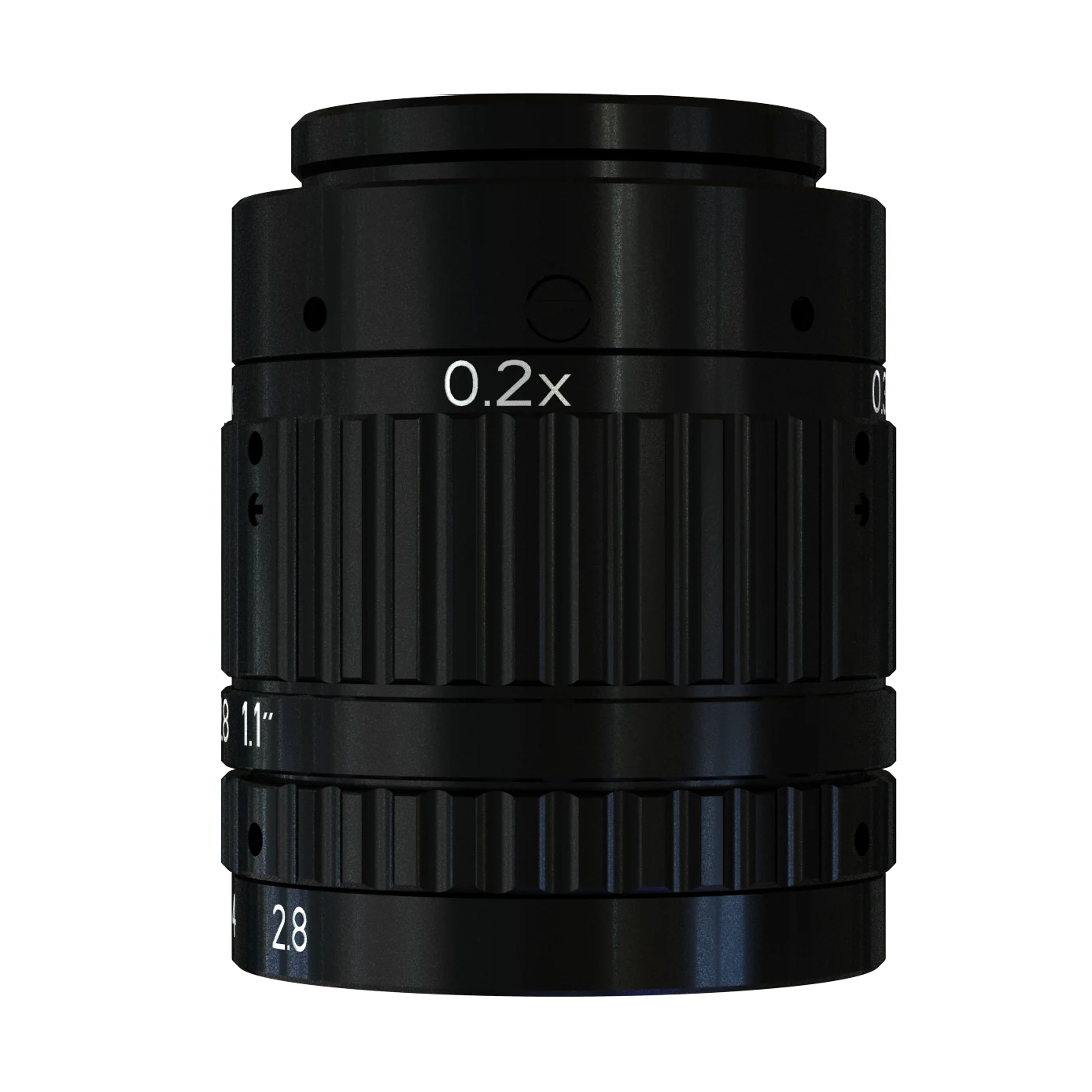

25mm, F2.8, 1.1", C-mount, Macro lens (65 mm (-0.4X) to 260.4 mm (-0.1X)) (LS-KF2528M-ML)
Model LS-KF2528M-ML
25mm, F2.8, 1.1", C-mount, Macro lens (65 mm (-0.4X) to 260.4 mm (-0.1X)). Sharp macro imaging with high image uniformity Ultra-low distortion and high relative illumination
Features
- Sharp macro imaging with high image uniformity
- Ultra-low distortion and high relative illumination
- Adjustable aperture, F2.8
- Compact size, maximum sensor format 1.1”
Specifications
| Model | LS-KF2528M-ML |
|---|---|
| Focal length | 25 mm |
| F-number | F2.8 ~ F16 |
| Image size | Φ17.6 mm(1.1”) |
| TV Distortion | 0.07% |
| Magnification range | 0.4x ~ 0.25x ~ 0.1x |
| Working distance range | 65 ~ 103 ~ 260 mm |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M27 × P0.5 |
| Connector type | C-Mount |
| Flange back length | 17.526 mm |
| Dimension | Φ32 × 35.7~43.9 mm |
| Weight | 67.7 g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.19 kg |
