Machine vision lenses

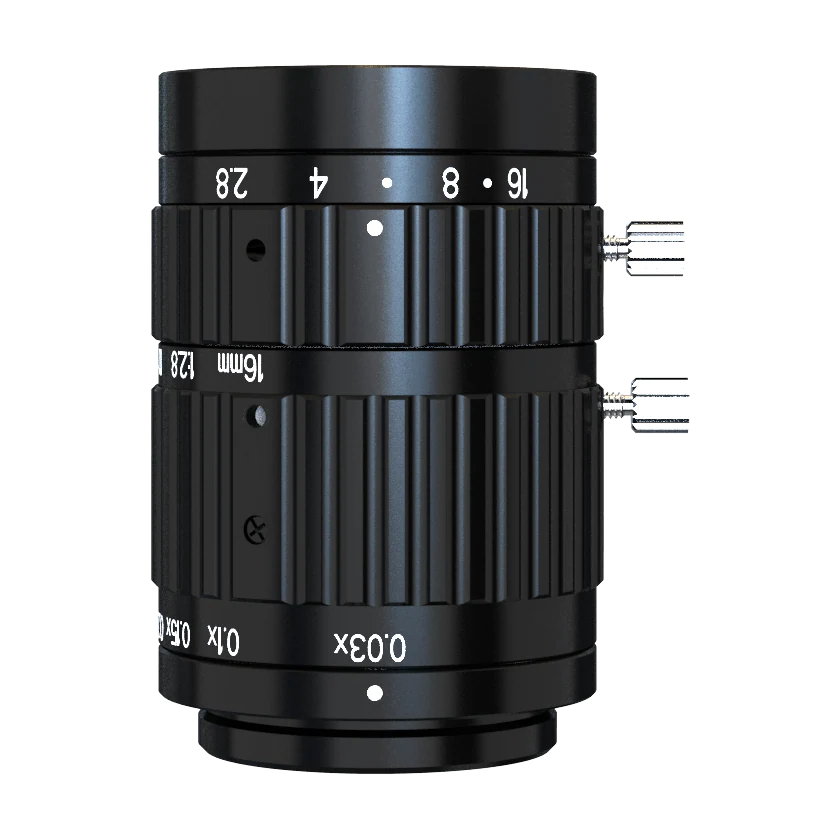

16mm, F2.8, 1.1", C-mount, Macro lens (52 mm (-0.25X) to 546 mm (-0.03X)) (LS-KF1628M-ML)
Model LS-KF1628M-ML
16mm, F2.8, 1.1", C-mount, Macro lens (52 mm (-0.25X) to 546 mm (-0.03X)). Sharp macro imaging with high image uniformity Ultra-low distortion and high relative illumination
Features
- Sharp macro imaging with high image uniformity
- Ultra-low distortion and high relative illumination
- Adjustable aperture, F2.8
- Compact size, maximum sensor format 1.1”
Specifications
| Model | LS-KF1628M-ML |
|---|---|
| Focal length | 16 mm |
| F-number | F2.8 ~ F16 |
| Image size | Φ17.6 mm(1.1”) |
| TV Distortion | 0.33% |
| Magnification range | 0.25x ~ 0.1x ~ 0.03x |
| Working distance range | 52 ~ 152 ~ 546 mm |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M28.5 × P0.5 |
| Connector type | C-Mount |
| Flange back length | 17.526 mm |
| Dimension | Φ32 × 43.65 mm |
| Weight | 81.6 g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.21 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
