Machine vision lenses

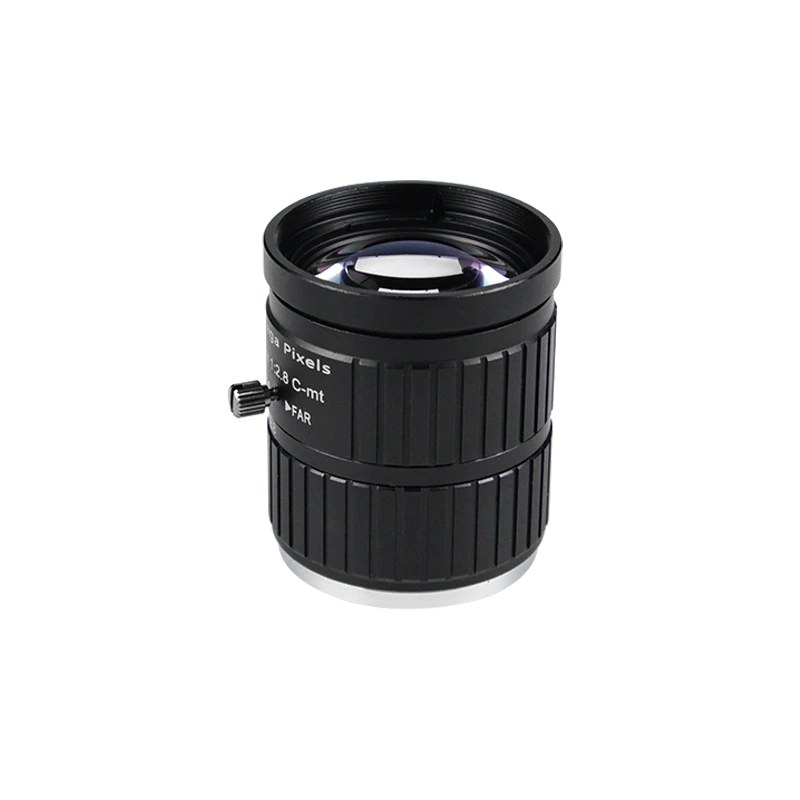

FA fixed focal lens (website models), 75 mm, 1", C-Mounts (LS-FA7528C)
Model LS-FA7528C
The industrial lens 5MP, suitable for 2MP, 3MP, 5MP industrial cameras.
Features
- Fixed aperture, adjustable manually.
- TV Distortion <1%.
- Focal length 3.5mm.
- Small size , compact design.
- High contrast industrial FA lens.
Specifications
| Model | LS-FA7528C |
|---|---|
| Image Size | 1" |
| Pixel | 10MP |
| F/NO | F2.8-16 |
| Focal Length | 75mm |
| ocal Length | 75mm |
| Format | 1" (dia. 1612.8x9.6) |
| Aperture range ( D/fˊ ) | F2.8-F16 |
| Mount | C-Mounts |
| F.O.V ( H*V ) 1" | 9.72°x7.23° |
| F.O.V ( H*V ) 2/3" | 6.70°x5.02° |
| F.O.V ( H*V ) 1/1.8" | 5.50°x4.01° |
| F.O.V ( H*V ) 1/2" | 4.90°x3.70° |
| Back Focal Length | 17.53mm |
| Optical length | 63.53 |
| Iris type | Manual/Lock(W/Lock) |
| Resolution ( MTF ) | 10Mega Pixel |
| Minimum object distance ( M.O.D) ( m ) | 1.2m |
| Dimension | dia. 39x46.0 |
| Weight ( g ) | 120g |
| Distortion | 0.05% |
| Structure | Aluminum alloy+8G |
| Remarks | UV M35.5x0.5p |
| Sensor format | 1" |
| Field of view | 9.72°x7.23° |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the FA fixed focal lens (website models) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-FA5M3.5C | 3.5 mm, 2/3", C-mount | $99.00 | 2 in stock | View |
| LS-FA5M06C | 6 mm, 2/3", C/CS-mount | $99.00 | 4 in stock | View |
| LS-FA2M3.5B | 3.5 mm, C-Mount | $99.00 | 5 in stock | View |
| LS-FA1211A | 12 mm, 1/1.8" | $109.00 | 4 in stock | View |
| LS-FA3511A | 35 mm, 1/1.8" | $139.00 | 5 in stock | View |
| LS-FA10M2.8C | 2.8 mm, 1/1.8", C-Mounts | $179.00 | 3 in stock | View |
| LS-FA0611A | 6 mm, 1/1.7" | $189.00 | 4 in stock | View |
