Machine vision lenses

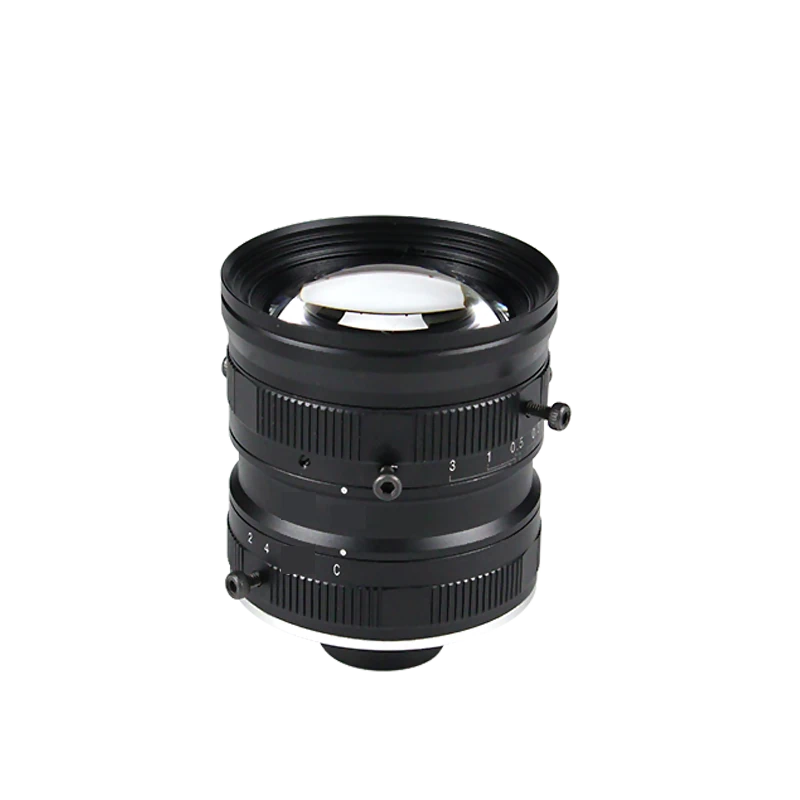

FA fixed focal lens (website models), 6 mm, 2/3", C/CS-mount (LS-FA5M06C)
Model LS-FA5M06C
The industrial lens 5MP, suitable for 2MP, 3MP, 5MP industrial cameras.
Features
- Fixed aperture, adjustable manually.
- TV Distortion <1%.
- Focal length 3.5mm.
- Small size , compact design.
- High contrast industrial FA lens.
Specifications
| Model | LS-FA5M06C |
|---|---|
| Image Size | 2/3" |
| Pixel | 5MP |
| F/NO | F1.4-16 |
| Focal Length | 6mm |
| Type | Machine vision Lens |
| EFL | 6mm |
| F.NO | F1.4∽16 |
| Resolution | 5MP |
| Image Format | 2/3" |
| BFL (M) | 13.53 |
| BFL ( O) | 17.53 |
| F.O.V (H*V) 2/3" | H*V:73.5º*57.6º |
| F.O.V (H*V) 1/1.8" | H*V:55º*42º |
| F.O.V (H*V) 1/3" | H*V:42º*31º |
| TV Distortion | <1% |
| M.O.D | 0.1m |
| Mount Type | C/CS |
| Dimension Figure | dia. 45.0*L55.91 |
| Filter Size | Non |
| Weight | 180g |
| Iris Operation | Manual |
| Zoom Operation | Fixed |
| Focus Operation | Manual |
| Operating Temperature | 20° +85° |
| Storage Temperature | 20° +85° |
| Sensor format | 2/3" |
| Aperture | F1.4-16 |
| Field of view | H*V:73.5º*57.6º |
