Machine vision lenses

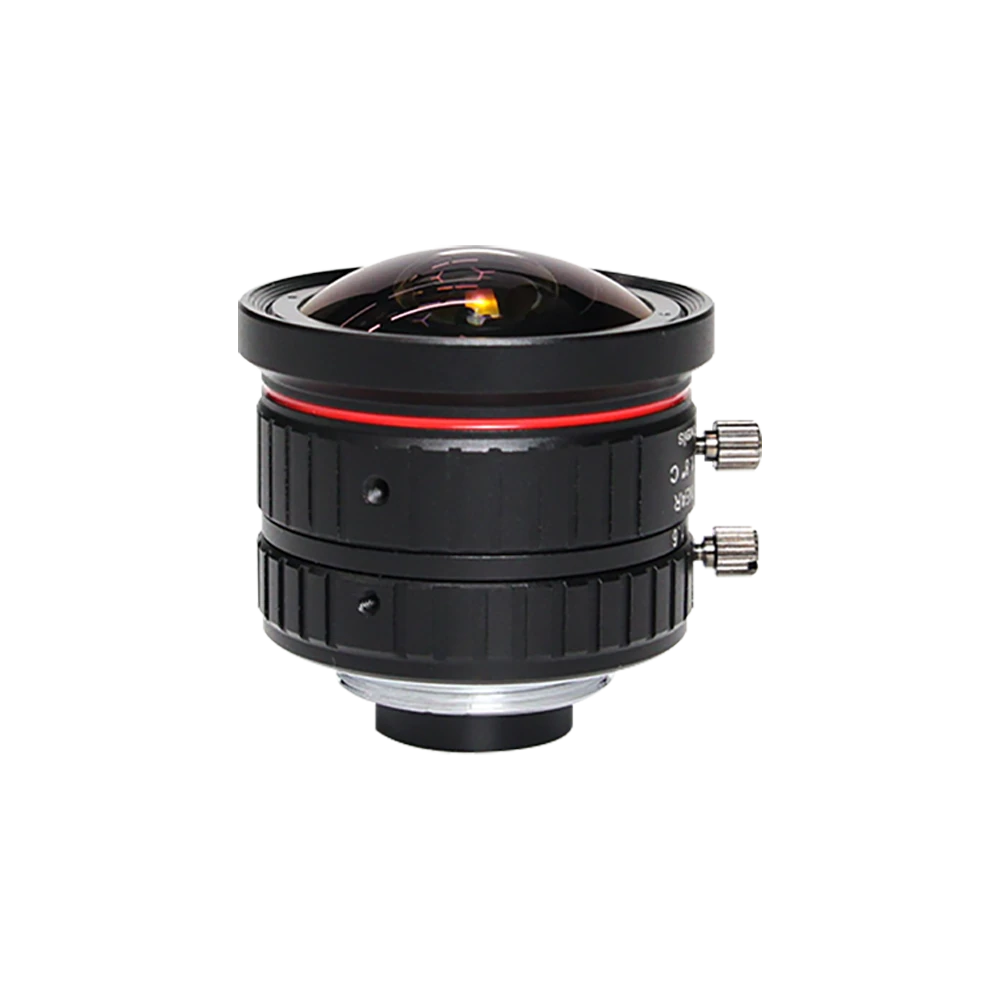

FA fixed focal lens (website models), 2.8 mm, 1/1.8", C-Mounts (LS-FA10M2.8C)
Model LS-FA10M2.8C
The industrial lens 5MP, suitable for 2MP, 3MP, 5MP industrial cameras.
Features
- Fixed aperture, adjustable manually.
- TV Distortion <1%.
- Focal length 3.5mm.
- Small size , compact design.
- High contrast industrial FA lens.
Specifications
| Model | LS-FA10M2.8C |
|---|---|
| Model No | LS-FA10M2.8C |
| Focal Length | 2.8mm |
| Format | 1/1.8" (dia. 9) |
| D/fˊ | F1.6-F16 |
| Mount | C-Mounts |
| D/H/V 1/1.8" | 172°x160°x108° ( 1/4" 90°x83.7°x56.5°) |
| Back Focal Length | 17.53mm |
| Optical length | 52.87mm |
| Iris type | W/Lock |
| MTF | 10Mega Pixel |
| M.O.D ( m ) | 0.05m |
| Dimension | dia. 42.00x30.50 |
| Weight ( g ) | 110.7g |
| Distortion | 89% ( Table parameters is provided) |
| Structure | Aluminium alloy (Anode black) (Connector zinc alloy) +10G |
| Sensor format | 1/1.8" (dia. 9) |
| Resolution (MP) | 10 |
| Aperture | F1.6-F16 |
| Field of view | 172°x160°x108° ( 1/4" 90°x83.7°x56.5°) |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the FA fixed focal lens (website models) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-FA5M3.5C | 3.5 mm, 2/3", C-mount | $99.00 | 2 in stock | View |
| LS-FA5M06C | 6 mm, 2/3", C/CS-mount | $99.00 | 4 in stock | View |
| LS-FA2M3.5B | 3.5 mm, C-Mount | $99.00 | 5 in stock | View |
| LS-FA1211A | 12 mm, 1/1.8" | $109.00 | 4 in stock | View |
| LS-FA3511A | 35 mm, 1/1.8" | $139.00 | 5 in stock | View |
| LS-FA0611A | 6 mm, 1/1.7" | $189.00 | 4 in stock | View |
| LS-FA7528C | 75 mm, 1", C-Mounts | $359.00 | 3 in stock | View |
