Machine vision lenses

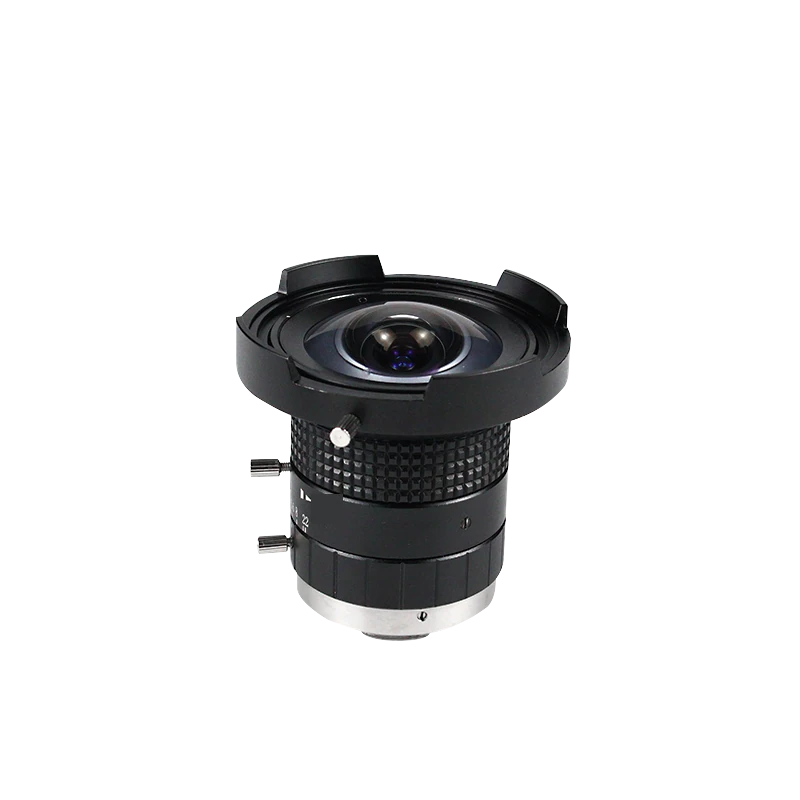

FA fixed focal lens (website models), 3.5 mm, 2/3", C-mount (LS-FA5M3.5C)
Model LS-FA5M3.5C
The industrial lens 5MP, suitable for 2MP, 3MP, 5MP industrial cameras.
Features
- Fixed aperture, adjustable manually.
- TV Distortion <1%.
- Focal length 3.5mm.
- Small size , compact design.
- High contrast industrial FA lens.
Specifications
| Model | LS-FA5M3.5C |
|---|---|
| Image Size | 2/3" |
| Pixel | 5MP |
| F/NO | F1.4-16 |
| Focal Length | 3.5mm |
| Type | C-Fisheye lens |
| Resolution | 5 MP |
| Image Format | 2/3” |
| Image Circle | dia. 11.2mm(MAX) |
| EFL | 3. 5mm |
| TTL | 72.7mm |
| F/NO. | 1. 4mm |
| FFL(M) | 12. 4mm |
| BFL(0) | 17.53mm |
| F.O.V(H*V) 2/3” | 185°*185° |
| F.O.V(H*V) 1/2” | 185°*154.1° |
| F.O.V(H*V) 1/3” | 154.1°*115.4° |
| TV Distortion | <-37% |
| Relative I11. | >80% |
| Chief Ray Angle | <20° |
| M.O.D | 0.1m~∞ |
| Mount Type | C |
| Dimension Figure | dia. 59.0*L60.3mm |
| Lens Structure | All Glass |
| IR-Filter | Non IR |
| Weight | 200g |
| Iris 0peration | Manual |
| Zoom Operation | Fixed |
| Focus Operation | Manual |
| Operating Temperature | 20°~+85° |
| Storage Temperature | 20°~+85° |
| Sensor format | 2/3" |
| Aperture | F1.4-16 |
| Field of view | 185°*185° |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the FA fixed focal lens (website models) series
