Machine vision lenses

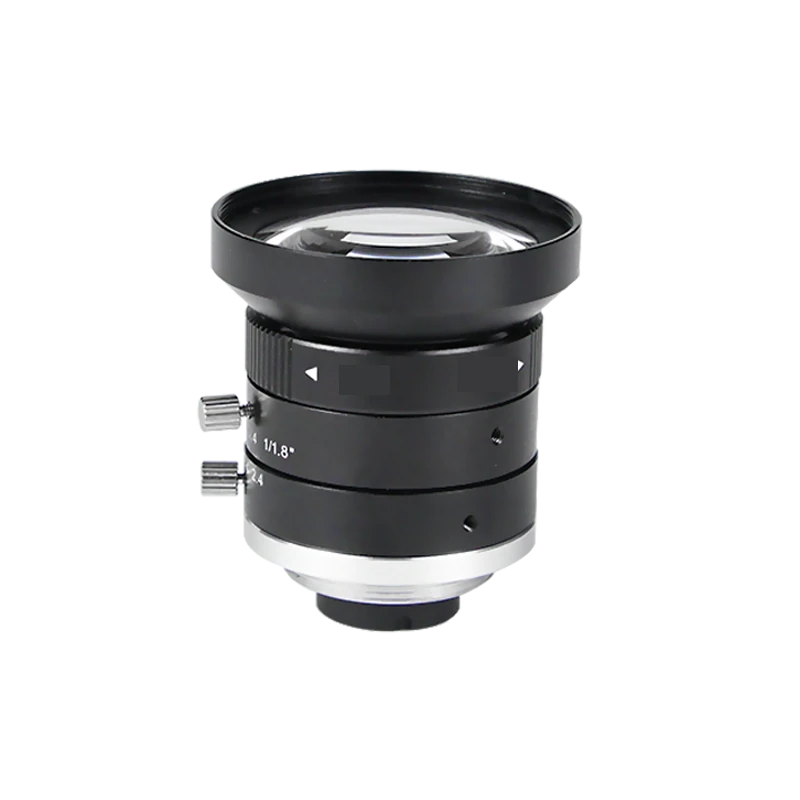

FA fixed focal lens (website models), 3.5 mm, C-Mount (LS-FA2M3.5B)
Model LS-FA2M3.5B
The industrial lens 5MP, suitable for 2MP, 3MP, 5MP industrial cameras.
Features
- Fixed aperture, adjustable manually.
- TV Distortion <1%.
- Focal length 3.5mm.
- Small size , compact design.
- High contrast industrial FA lens.
Specifications
| Model | LS-FA2M3.5B |
|---|---|
| Image Size | 1/1.8-inch |
| Focal length | 3.5mm |
| Resolution | 2MP |
| F No. | F2.4-C |
| M.O.D(m) | 0.1-Inf. |
| Operation Iris | Manual |
| Operation Focus | Manual |
| D/H/V 1/1.8" | 104.5°×94.3°×78.0° |
| D/H/V 1/2" | 99.6°×87.9°×71.1° |
| D/H/V 1/3" | 84.2°×71.1°×55.6° |
| Distortion | 1.23% |
| BFL | 8.57mm |
| Mount | C-Mount |
| Object Dimension 1/1.8" | 350.5mm×261.3mm(WD=150mm) |
| Object Dimension 1/2" | 312mm×230.5mm(WD=150mm) |
| Object Dimension 1/3" | 230.5mm×170mm(WD=150mm) |
| Dimension | dia. 42×37.7mm |
| Weight | 130g |
| Horizontal Resolution | 100lp/mm |
| Filter Thread | M40.5*0.5 |
| Working Temperature | 20ºC +70ºC |
| Sensor format | 1/1.8-inch |
| Aperture | F2.4-C |
| Field of view | 104.5°×94.3°×78.0° |
