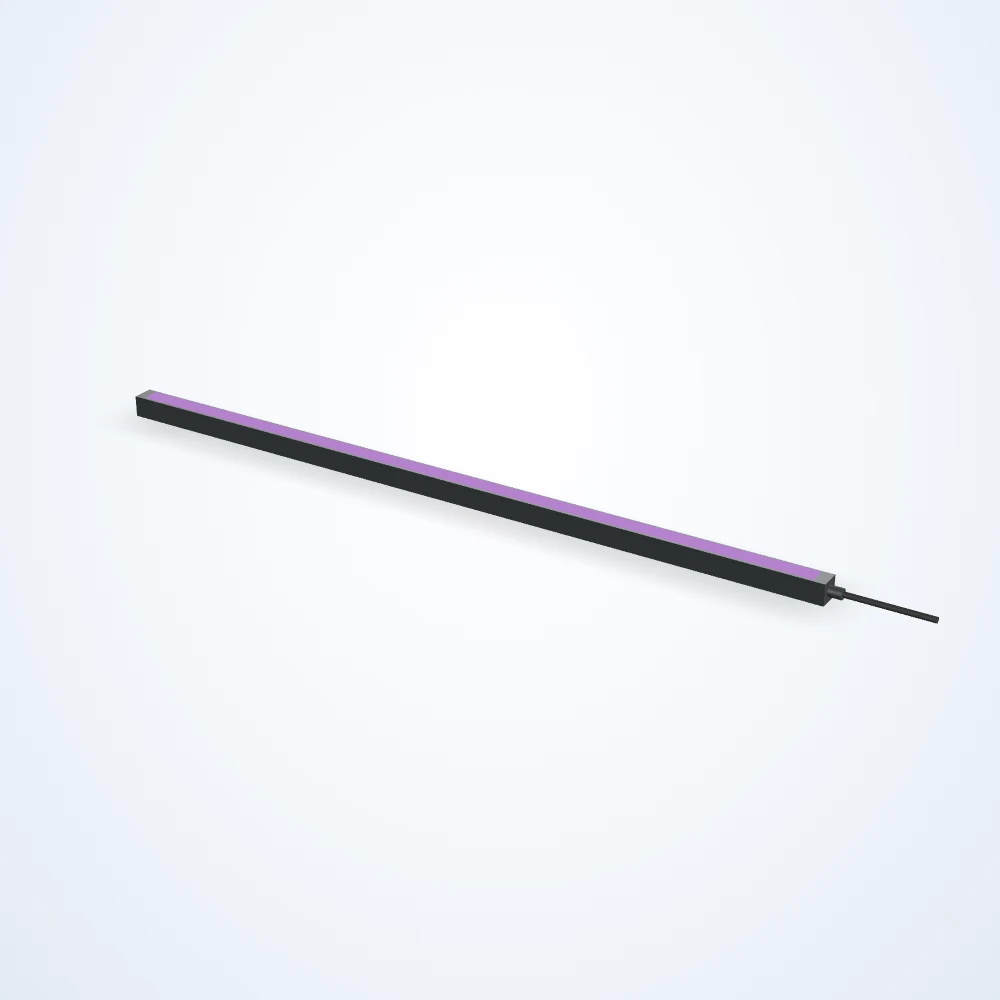

Rendered illustration: the actual product may differ in appearance.
Bar lights
715 x 20 mm bar light (LS-BAR-0109-L9)
Model LS-BAR-0109-L9
715 x 20 mm bar light. Lit area 692.7 x 15 mm. Connection: Flying Leads. Available in 22 configurations (color, lens angle); choose one below and request a quote.
Specifications
| Model | LS-BAR-0109-L9 |
|---|---|
| Active Length (mm) | 692.7 |
| Active Width (mm) | 15 |
| Cable Length (mm) | 2000 |
| Collimated | Not Collimated |
| Compliances | CE, IEC 62471, RoHS |
| Connector Type | Flying Leads |
| Connectorized At Light | Hardwired |
| Daisy Chain | No |
| Direct Connect | No |
| Driver Included | Included |
| Driver Location | In Line |
| Driver Nomenclature | iCS4 - I4 |
| Height (mm) | 20.1 |
| Housing Material | Aluminum |
| IP Rating | IP50 |
| Intensity Adjustment Type | Analog Voltage |
| Length (mm) | 715 |
| Maximum Constant On Current (mA) | 86 |
| Maximum Current (Overcurrent Strobe) (mA) | 8000 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Input Power Constant On (W) | 2.1 |
| Maximum Input Power Overcurrent Strobe (W) | 150 |
| Maximum Operating Temperature (C) | 60 |
| Maximum Operating Temperature (F) | 140 |
| Maximum Overcurrent Strobe Frequency (Hz) | 2000 |
| Maximum Overcurrent Strobe Latency (us) | 20 |
| Minimum Operating Temperature (F) | 32 |
| Mounting Method | Tapped Holes |
| NPN Trigger Voltage (V) | < 1 VDC |
| Operation Modes | Constant On, Constant On – Dimmable, Overcurrent Strobe, Overcurrent Strobe - Dimmable |
| PNP Trigger Current (mA) | 5 |
| PNP Trigger Voltage (V) | 2.5-30 VDC |
| Polarized | Not Polarized |
| Product Weight (Kg) | 1.83 |
| Product Weight (Lbs) | 4.04 |
| Strobe Trigger Input | PNP Trigger |
| Voltage | 24 VDC |
| Width (mm) | 20 |
