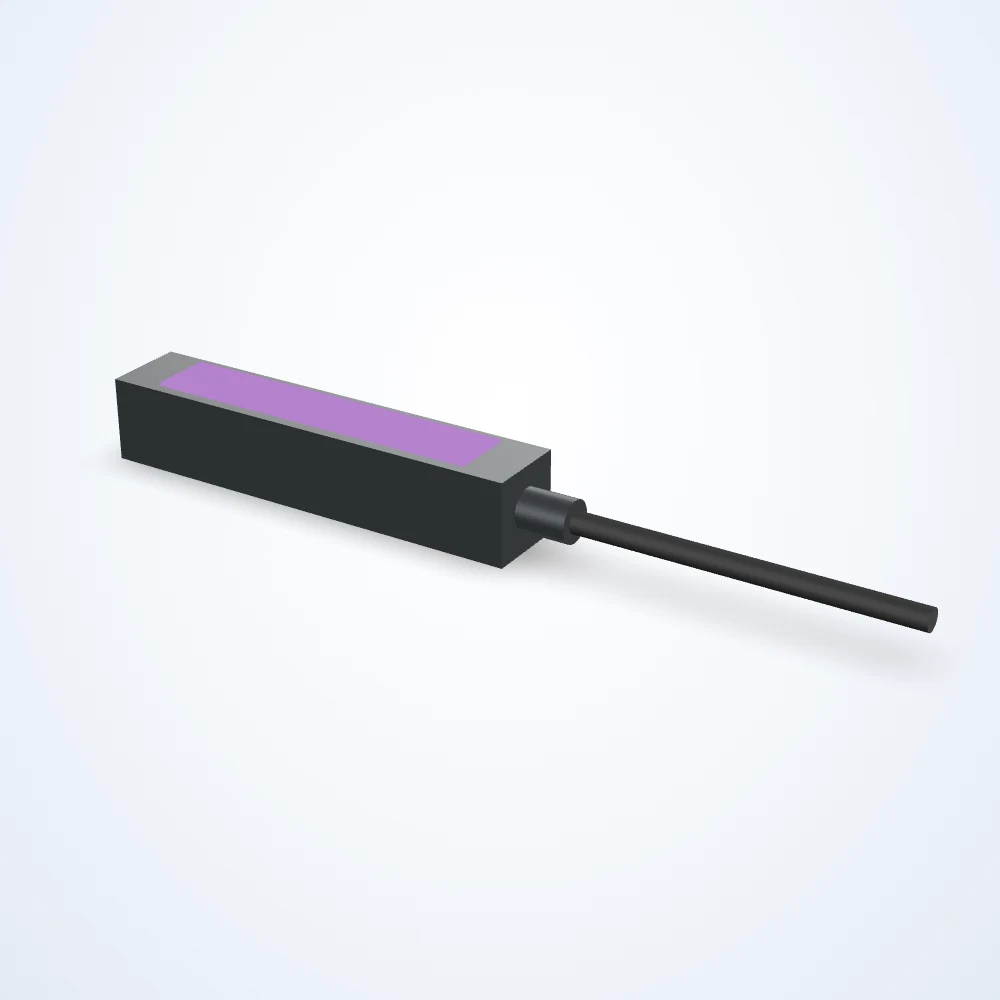

105.4 x 20 mm bar light (LS-BAR-0109-L1)

Name: 105.4 x 20 mm bar light (LS-BAR-0109-L1)
Brand: LumaSpec Vision
SKU: LS-BAR-0109-L1

Model LS-BAR-0109-L1

105.4 x 20 mm bar light. Lit area 83.1 x 15 mm. Connection: Flying Leads. Available in 78 configurations (color, driver nomenclature, lens angle, maximum current (overcurrent strobe) (ma)); choose one below and request a quote.

Price on request

Ships in 2-3 weeks

ColorDriver NomenclatureLens AngleMaximum Current (Overcurrent Strobe) (mA)Maximum Input Power Overcurrent Strobe (W)Maximum Overcurrent Strobe Frequency (Hz)Maximum Overcurrent Strobe Latency (us)Minimum Overcurrent Strobe Duration (us)NPN Trigger Voltage (V)Operation ModesPNP Trigger Current (mA)PNP Trigger Voltage (V)Strobe Trigger Input

Configuration LS-BAR-0109-001 of 78

Build a system with this light → Matching lens, light, controller and cables, checked for fit

Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
90-day returnsUnused items; free return label in the US · Returns policy
Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
Questions about fit?Contact us; we reply within one business day

Datasheet (PDF) - LS-BAR-0109-L1

Specifications

Model	LS-BAR-0109-L1
Active Length (mm)	83.1
Active Width (mm)	15
Cable Length (mm)	2000
Collimated	Not Collimated
Compliances	CE, IEC 62471, RoHS
Connector Type	Flying Leads
Connectorized At Light	Hardwired
Daisy Chain	No
Direct Connect	No
Driver Included	Included
Driver Location	In Line
Height (mm)	20.1
Housing Material	Aluminum
IP Rating	IP50
Intensity Adjustment Type	Analog Voltage
Length (mm)	105.4
Maximum Constant On Current (mA)	12
Maximum Duty Cycle (%)	100
Maximum Input Power Constant On (W)	0.3
Maximum Operating Temperature (C)	60
Maximum Operating Temperature (F)	140
Minimum Operating Temperature (F)	32
Mounting Method	Tapped Holes
Polarized	Not Polarized
Product Weight (Kg)	0.62
Product Weight (Lbs)	1.36
Voltage	24 VDC
Width (mm)	20

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the 105.4 x 20 mm bar light series

Model	Price	Availability	Link
LS-BAR-0109-L2	Price on request	287 in stock	View
LS-BAR-0109-L3	Price on request	277 in stock	View
LS-BAR-0109-L4	Price on request	382 in stock	View
LS-BAR-0109-L5	Price on request	364 in stock	View
LS-BAR-0109-L6	Price on request	361 in stock	View
LS-BAR-0109-L7	Price on request	299 in stock	View
LS-BAR-0109-L8	Price on request	313 in stock	View
LS-BAR-0109-L9	Price on request	67 in stock	View
LS-BAR-0109-L10	Price on request	13 in stock	View
LS-BAR-0109-L11	Price on request	14 in stock	View
LS-BAR-0109-L12	Price on request	20 in stock	View
LS-BAR-0109-L13	Price on request	20 in stock	View
LS-BAR-0109-L14	Price on request	15 in stock	View
