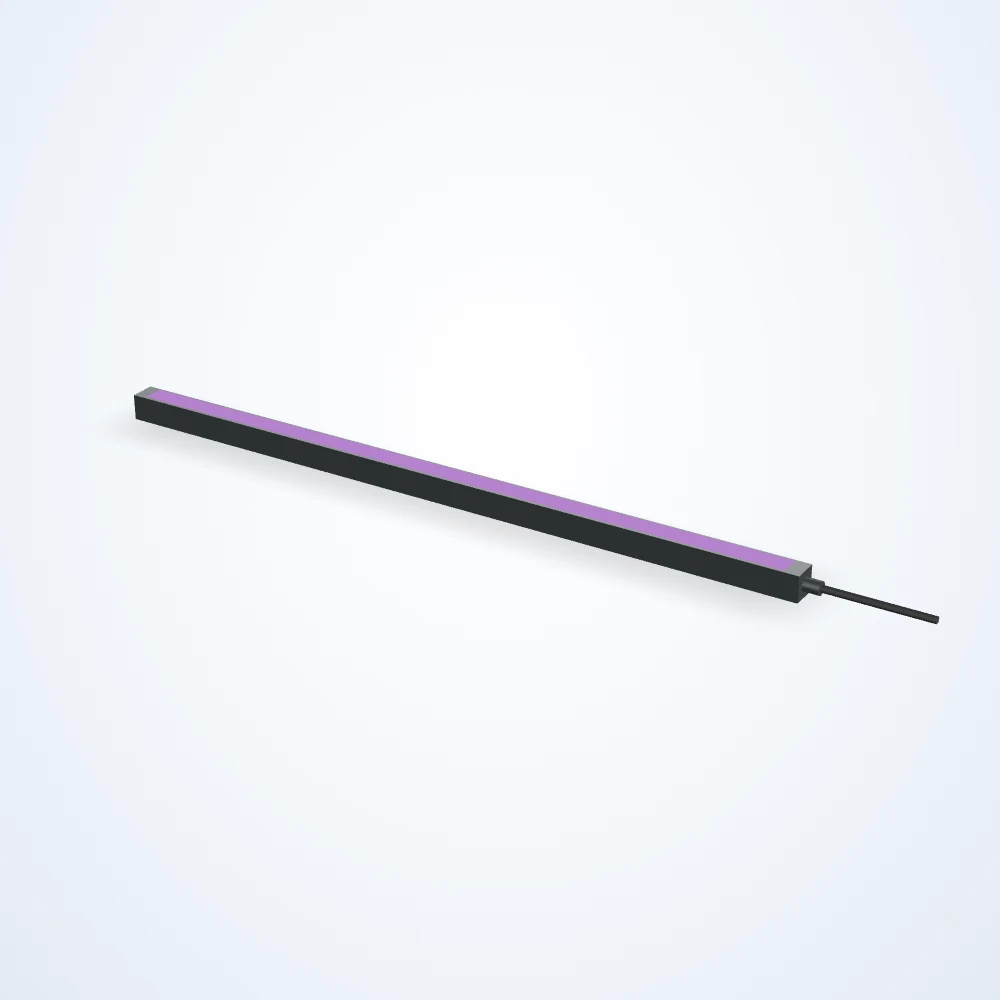

Rendered illustration: the actual product may differ in appearance.
Bar lights
Bar light, 540.3 mm lit length (LS-BAR-0109-L7)
Model LS-BAR-0109-L7
LED bar light for directional, low-angle or angled illumination: edges, surface texture, engraving and label reading, mounted singly or in pairs and quads. Lit area 540.3 x 15 mm; 24 VDC supply; connection: flying leads. Choose colour, lens / beam angle, operating modes, strobe trigger input, maximum constant on current (ma) below (88 configurations) and request a quote.
Specifications
| Model | LS-BAR-0109-L7 |
|---|---|
| Lit length (mm) | 540.3 |
| Lit width (mm) | 15 |
| Length (mm) | 562.6 |
| Width (mm) | 20 |
| Height (mm) | 20.1 |
| Voltage | 24 VDC |
| Connector | Flying Leads |
| Connection at light | Hardwired |
| Cable length (mm) | 2000 |
| Driver included | Included |
| Driver location | In Line |
| Intensity control | Analog Voltage |
| Operating temperature | up to 60 °C |
| IP rating | IP50 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Not Diffused |
| Direct connect | No |
| Driver nomenclature | iCS2 - IC / iCS4 - I4 (by configuration) |
| Maximum current (overcurrent strobe) (ma) | 8000 (by configuration) |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 1.1 / 1.6 (by configuration) |
| Maximum input power overcurrent strobe (w) | 125 / 150 (by configuration) |
| Maximum overcurrent strobe frequency (hz) | 2000 (by configuration) |
| Maximum overcurrent strobe latency (us) | 20 / 60 (by configuration) |
| Minimum overcurrent strobe duration (us) | 30 (by configuration) |
| NPN trigger voltage (v) | < 1 VDC (by configuration) |
| PNP trigger current (ma) | 5 (by configuration) |
| PNP trigger voltage (v) | 2.5-30 VDC (by configuration) |
| Polarized | Not Polarized |
| Compliance | CE, IEC 62471, RoHS |
