Bar lights

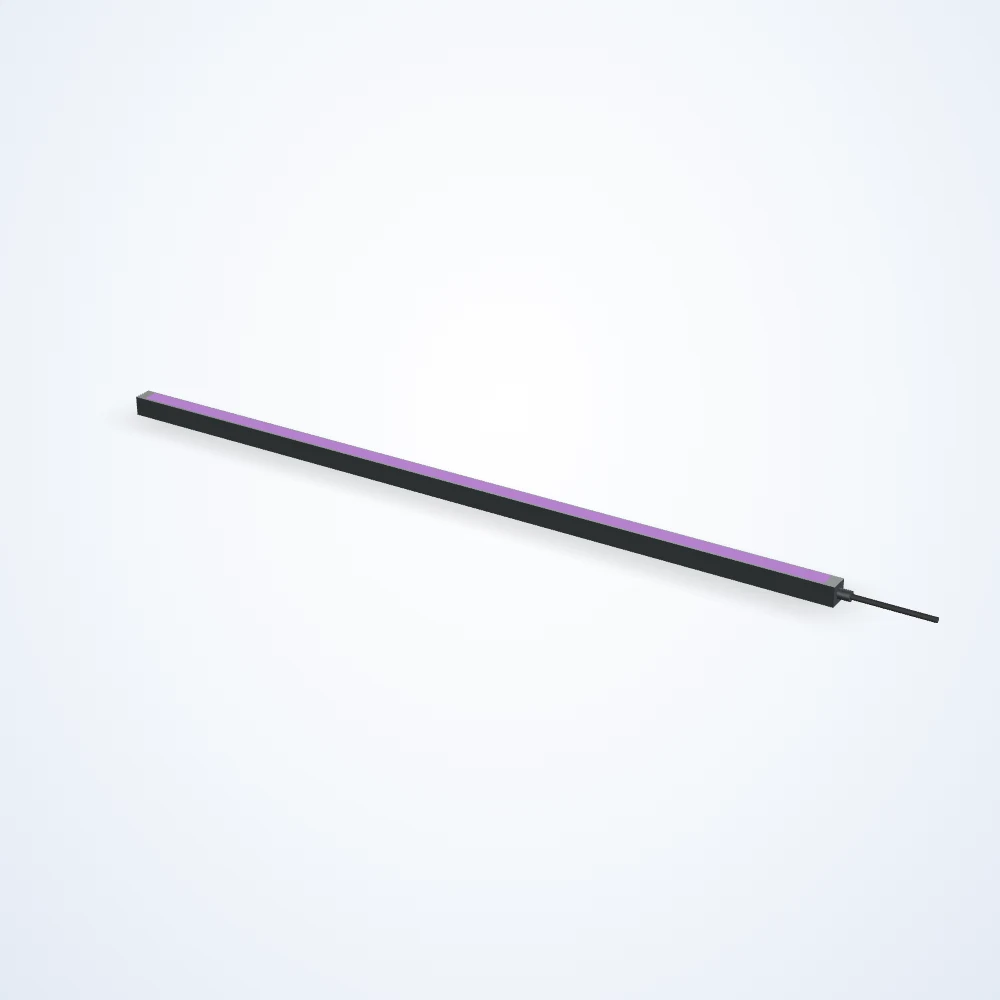

791.2 x 20 mm bar light (LS-BAR-0109-L10)
Model LS-BAR-0109-L10
791.2 x 20 mm bar light. Lit area 768.9 x 15 mm. Connection: Flying Leads. Available in 5 configurations (color); choose one below and request a quote.
Specifications
| Model | LS-BAR-0109-L10 |
|---|---|
| Active Length (mm) | 768.9 |
| Active Width (mm) | 15 |
| Cable Length (mm) | 2000 |
| Collimated | Not Collimated |
| Compliances | CE, IEC 62471, RoHS |
| Connector Type | Flying Leads |
| Connectorized At Light | Hardwired |
| Daisy Chain | No |
| Direct Connect | No |
| Driver Included | Included |
| Driver Location | In Line |
| Driver Nomenclature | iCS4 - I4 |
| Height (mm) | 20.1 |
| Housing Material | Aluminum |
| IP Rating | IP50 |
| Intensity Adjustment Type | Analog Voltage |
| Length (mm) | 791.2 |
| Lens Angle | 20 Degree |
| Maximum Constant On Current (mA) | 62 |
| Maximum Current (Overcurrent Strobe) (mA) | 8000 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Input Power Constant On (W) | 1.5 |
| Maximum Input Power Overcurrent Strobe (W) | 150 |
| Maximum Operating Temperature (C) | 60 |
| Maximum Operating Temperature (F) | 140 |
| Maximum Overcurrent Strobe Frequency (Hz) | 2000 |
| Maximum Overcurrent Strobe Latency (us) | 20 |
| Minimum Operating Temperature (F) | 32 |
| Mounting Method | Tapped Holes |
| NPN Trigger Voltage (V) | < 1 VDC |
| Operation Modes | Constant On, Constant On – Dimmable, Overcurrent Strobe, Overcurrent Strobe - Dimmable |
| PNP Trigger Current (mA) | 5 |
| PNP Trigger Voltage (V) | 2.5-30 VDC |
| Polarized | Not Polarized |
| Product Weight (Kg) | 1.98 |
| Product Weight (Lbs) | 4.36 |
| Strobe Trigger Input | PNP Trigger |
| Voltage | 24 VDC |
| Width (mm) | 20 |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the 791.2 x 20 mm bar light series
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-BAR-0109-L1 | Price on request | 279 in stock | View | |
| LS-BAR-0109-L2 | Price on request | 287 in stock | View | |
| LS-BAR-0109-L3 | Price on request | 277 in stock | View | |
| LS-BAR-0109-L4 | Price on request | 382 in stock | View | |
| LS-BAR-0109-L5 | Price on request | 364 in stock | View | |
| LS-BAR-0109-L6 | Price on request | 361 in stock | View | |
| LS-BAR-0109-L7 | Price on request | 299 in stock | View | |
| LS-BAR-0109-L8 | Price on request | 313 in stock | View | |
| LS-BAR-0109-L9 | Price on request | 67 in stock | View | |
| LS-BAR-0109-L11 | Price on request | 14 in stock | View | |
| LS-BAR-0109-L12 | Price on request | 20 in stock | View | |
| LS-BAR-0109-L13 | Price on request | 20 in stock | View | |
| LS-BAR-0109-L14 | Price on request | 15 in stock | View |
