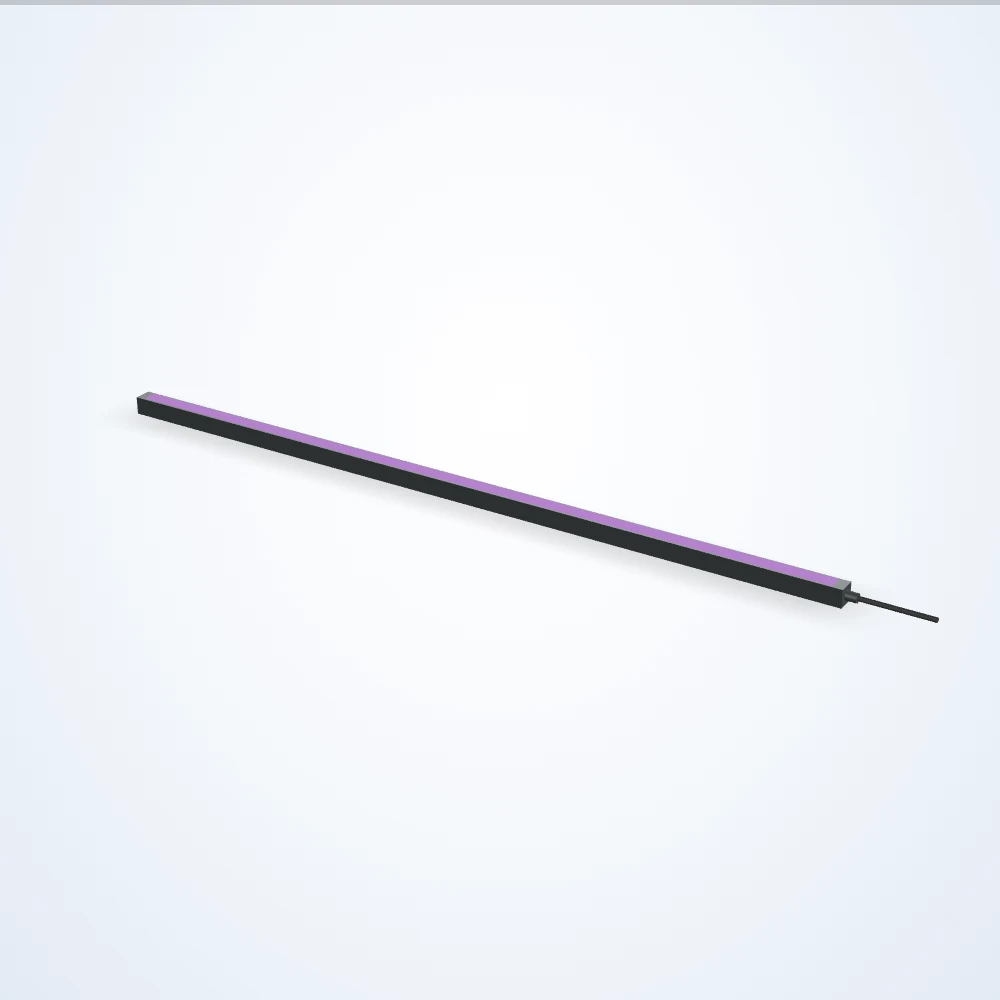

Rendered illustration: the actual product may differ in appearance.
Bar lights
Bar light, 845.1 mm lit length (LS-BAR-0109-L11)
Model LS-BAR-0109-L11
LED bar light for directional, low-angle or angled illumination: edges, surface texture, engraving and label reading, mounted singly or in pairs and quads. Lit area 845.1 x 15 mm; 24 VDC supply; connection: flying leads. Choose colour below (5 configurations) and request a quote.
Specifications
| Model | LS-BAR-0109-L11 |
|---|---|
| Lens / beam angle | 20 Degree |
| Lit length (mm) | 845.1 |
| Lit width (mm) | 15 |
| Length (mm) | 867.4 |
| Width (mm) | 20 |
| Height (mm) | 20.1 |
| Voltage | 24 VDC |
| Connector | Flying Leads |
| Connection at light | Hardwired |
| Cable length (mm) | 2000 |
| Driver included | Included |
| Driver location | In Line |
| Intensity control | Analog Voltage |
| Operating modes | Constant On, Constant On – Dimmable, Overcurrent Strobe, Overcurrent Strobe - Dimmable |
| Strobe trigger input | PNP Trigger |
| Operating temperature | up to 60 °C |
| IP rating | IP50 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Not Diffused |
| Direct connect | No |
| Driver nomenclature | iCS4 - I4 |
| Max overcurrent strobe current | 8000 mA |
| Max overcurrent strobe input power | 150 W |
| Maximum constant on current (ma) | 68 |
| Maximum current (overcurrent strobe) (ma) | 8000 |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 1.6 |
| Maximum input power overcurrent strobe (w) | 150 |
| Maximum overcurrent strobe frequency (hz) | 2000 |
| Maximum overcurrent strobe latency (us) | 20 |
| NPN trigger voltage (v) | < 1 VDC |
| PNP trigger current (ma) | 5 |
| PNP trigger voltage (v) | 2.5-30 VDC |
| Polarized | Not Polarized |
| Compliance | CE, IEC 62471, RoHS |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Bar light, 845.1 mm lit length series
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-BAR-0109-L1 | Price on request | 279 in stock | View | |
| LS-BAR-0109-L2 | Price on request | 287 in stock | View | |
| LS-BAR-0109-L3 | Price on request | 277 in stock | View | |
| LS-BAR-0109-L4 | Price on request | 382 in stock | View | |
| LS-BAR-0109-L5 | Price on request | 364 in stock | View | |
| LS-BAR-0109-L6 | Price on request | 361 in stock | View | |
| LS-BAR-0109-L7 | Price on request | 299 in stock | View | |
| LS-BAR-0109-L8 | Price on request | 313 in stock | View | |
| LS-BAR-0109-L9 | Price on request | 67 in stock | View | |
| LS-BAR-0109-L10 | Price on request | 13 in stock | View | |
| LS-BAR-0109-L12 | Price on request | 20 in stock | View | |
| LS-BAR-0109-L13 | Price on request | 20 in stock | View | |
| LS-BAR-0109-L14 | Price on request | 15 in stock | View |
