Lights

Line scan lights

Line scan lights put a narrow, very bright and uniform line on moving web, sheet and conveyor inspection for line-scan cameras. Choose cooling by duty and brightness: passive, fan or water cooled, plus coaxial and dual-angle versions.

Shop by colour: Red line scan lights · Blue line scan lights · Green line scan lights · White line scan lights · Infrared line scan lights · UV line scan lights

763 models Configure a systemAll lights
Line scan lights

169-192 of 763 models

Products

  • 950 mm linear light source

    LS-LSC-0612

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting width 20 mm
    • Cooling Fan (labelled on the drawings)

    $2,759.00

    Ships in 2-3 weeks

  • 800 mm linear light source

    LS-LSC-0609

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting width 20 mm
    • Cooling Fan (labelled on the drawings)

    $2,349.00

    Ships in 2-3 weeks

  • 700 mm linear light source

    LS-LSC-0606

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting width 20 mm
    • Cooling Fan (labelled on the drawings)

    $2,079.00

    Ships in 2-3 weeks

  • 600 mm linear light source

    LS-LSC-0605

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting width 20 mm
    • Cooling Fan (labelled on the drawings)

    $1,809.00

    Ships in 2-3 weeks

  • 720 mm linear light source

    LS-LSC-0607

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting width 20 mm
    • Cooling Fan (labelled on the drawings)

    $2,139.00

    Ships in 2-3 weeks

  • 300 mm linear light source

    LS-LSC-0601

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting width 20 mm
    • Cooling Fan (labelled on the drawings)

    $999.00

    Ships in 2-3 weeks

  • 750 mm linear light source

    LS-LSC-0608

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting width 20 mm
    • Cooling Fan (labelled on the drawings)

    $2,219.00

    Ships in 2-3 weeks

  • 500 mm linear light source

    LS-LSC-0604

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting width 20 mm
    • Cooling Fan (labelled on the drawings)

    $1,539.00

    Ships in 2-3 weeks

  • 200 mm linear light source

    LS-LSC-0599

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting width 20 mm
    • Cooling Fan (labelled on the drawings)

    $729.00

    Ships in 2-3 weeks

  • 350 mm linear light source

    LS-LSC-0602

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting width 20 mm
    • Cooling Fan (labelled on the drawings)

    $1,139.00

    Ships in 2-3 weeks

  • 400 mm linear light source

    LS-LSC-0603

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting width 20 mm
    • Cooling Fan (labelled on the drawings)

    $1,269.00

    Ships in 2-3 weeks

  • 250 mm linear light source

    LS-LSC-0600

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting width 20 mm
    • Cooling Fan (labelled on the drawings)

    $869.00

    Ships in 2-3 weeks

  • 100 mm linear light source

    LS-LSC-0598

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting width 20 mm
    • Cooling Fan (labelled on the drawings)

    $459.00

    Ships in 2-3 weeks

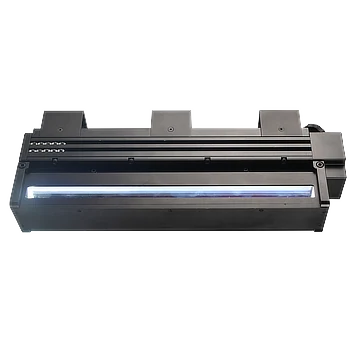

  • Line Scan Light, 470 mm, White

    LS-LSC-0673

    • Colour White
    • Emitting area 442 mm × 17 mm
    • Size 470 mm × 109 mm × 53 mm

    $1,389.00

    Ships in 2-3 weeks

  • Line Scan Light, 2070 mm, White

    LS-LSC-0667

    • Colour White
    • Emitting area 2000 mm × 17 mm
    • Size 2070 mm × 58 mm × 90.1 mm

    $5,589.00Quote

    Ships in 2-3 weeks

  • Line Scan Light, 1870 mm, White

    LS-LSC-0665

    • Colour White
    • Emitting area 1800 mm × 17 mm
    • Size 1870 mm × 58 mm × 90.1 mm

    $5,059.00Quote

    Ships in 2-3 weeks

  • Line Scan Light, 1570 mm, White

    LS-LSC-0662

    • Colour White
    • Emitting area 1500 mm × 17 mm
    • Size 1570 mm × 58 mm × 90.1 mm

    $4,249.00Quote

    Ships in 2-3 weeks

Compare
LS-LSC-0612950 mm linear light source Red, Green, Blue, White, Infrared, UV20 mmFan (labelled on the drawings)980 mm--$2,759.00 Ships in 2-3 weeks
LS-LSC-0609800 mm linear light source Red, Green, Blue, White, Infrared, UV20 mmFan (labelled on the drawings)830 mm--$2,349.00 Ships in 2-3 weeks
LS-LSC-0606700 mm linear light source Red, Green, Blue, White, Infrared, UV20 mmFan (labelled on the drawings)730 mm--$2,079.00 Ships in 2-3 weeks
LS-LSC-0605600 mm linear light source Red, Green, Blue, White, Infrared, UV20 mmFan (labelled on the drawings)630 mm--$1,809.00 Ships in 2-3 weeks
LS-LSC-0607720 mm linear light source Red, Green, Blue, White, Infrared, UV20 mmFan (labelled on the drawings)750 mm--$2,139.00 Ships in 2-3 weeks
LS-LSC-0601300 mm linear light source Red, Green, Blue, White, Infrared, UV20 mmFan (labelled on the drawings)330 mm--$999.00 Ships in 2-3 weeks
LS-LSC-0608750 mm linear light source Red, Green, Blue, White, Infrared, UV20 mmFan (labelled on the drawings)780 mm--$2,219.00 Ships in 2-3 weeks
LS-LSC-0604500 mm linear light source Red, Green, Blue, White, Infrared, UV20 mmFan (labelled on the drawings)530 mm--$1,539.00 Ships in 2-3 weeks
LS-LSC-0599200 mm linear light source Red, Green, Blue, White, Infrared, UV20 mmFan (labelled on the drawings)230 mm--$729.00 Ships in 2-3 weeks
LS-LSC-0602350 mm linear light source Red, Green, Blue, White, Infrared, UV20 mmFan (labelled on the drawings)380 mm--$1,139.00 Ships in 2-3 weeks
LS-LSC-0603400 mm linear light source Red, Green, Blue, White, Infrared, UV20 mmFan (labelled on the drawings)430 mm--$1,269.00 Ships in 2-3 weeks
LS-LSC-0600250 mm linear light source Red, Green, Blue, White, Infrared, UV20 mmFan (labelled on the drawings)280 mm--$869.00 Ships in 2-3 weeks
LS-LSC-0598100 mm linear light source Red, Green, Blue, White, Infrared, UV20 mmFan (labelled on the drawings)130 mm--$459.00 Ships in 2-3 weeks
LS-LSC-0674Line Scan Light, 270 mm, IR 808 nm Infrared---270 mm × 22 mm316 mm × 142.5 mm × 71 mm$979.00 Ships in 2-3 weeks
LS-LSC-0672Line Scan Light, 338 mm, White, size 338 mm × 109 mm × 53 mm White---292 mm × 17 mm338 mm × 109 mm × 53 mm$989.00 Ships in 2-3 weeks
LS-LSC-0675Line Scan Light, 270 mm, IR 808 nm Infrared---270 mm × 22 mm316 mm × 142.5 mm × 71 mm$979.00 Ships in 2-3 weeks
LS-LSC-0671Line Scan Light, 170 mm, White White---142 mm × 17 mm170 mm × 109 mm × 53 mm$579.00 Ships in 2-3 weeks
LS-LSC-0673Line Scan Light, 470 mm, White White---442 mm × 17 mm470 mm × 109 mm × 53 mm$1,389.00 Ships in 2-3 weeks
LS-LSC-0669Line Scan Light, 243 mm, White, size 243 mm × 128.1 mm × 57.3 mm White---198 mm × 17 mm243 mm × 128.1 mm × 57.3 mm$729.00 Ships in 2-3 weeks
LS-LSC-0670Line Scan Light, 343 mm, White, size 343 mm × 128.1 mm × 57.3 mm White---298 mm × 17 mm343 mm × 128.1 mm × 57.3 mm$999.00 Ships in 2-3 weeks
LS-LSC-0667Line Scan Light, 2070 mm, White White---2000 mm × 17 mm2070 mm × 58 mm × 90.1 mm$5,589.00Quote Ships in 2-3 weeks
LS-LSC-0665Line Scan Light, 1870 mm, White White---1800 mm × 17 mm1870 mm × 58 mm × 90.1 mm$5,059.00Quote Ships in 2-3 weeks
LS-LSC-0668Line Scan Light, 143 mm, White, size 143 mm × 128.1 mm × 57.3 mm White---98 mm × 17 mm143 mm × 128.1 mm × 57.3 mm$459.00 Ships in 2-3 weeks
LS-LSC-0662Line Scan Light, 1570 mm, White White---1500 mm × 17 mm1570 mm × 58 mm × 90.1 mm$4,249.00Quote Ships in 2-3 weeks

How to choose a line scan light

A line scan camera builds its image one row of pixels at a time while the web or part moves past. It needs light only on a narrow stripe, but that stripe must be very bright, because each line is exposed for microseconds, and very even along its length, because any dip shows up as a streak through every image. A line scan light has a long, narrow emitting window, often with a lens that focuses the LEDs into a thin, intense line.

1. Length: cover the scan line plus margin

The lit length must be longer than the field of view the camera sees across the web. Brightness falls off over the last few centimetres at each end, so add margin on both sides - roughly 10% of the field width, or more when the light sits far from the part. Lengths here run from short units of under 100 mm for narrow parts and lab setups to bars of 2 m and more for full-width web inspection; several ranges come in fixed steps (for example 75 mm or 150 mm increments), so you can match the web width closely.

2. Brightness: work back from the line rate

The exposure time of a line scan camera is at most the line period: at 50 kHz a line has 20 µs. Use the line rate calculator to get the line rate from web speed and pixel size, then pick a light that gives enough signal in that time. Focused (condensing) versions put the LED output into a narrow line and give the highest brightness at their focal distance; diffuse versions spread the light and tolerate height changes better. Electrical power in this category runs from a few watts for mini lights to several hundred watts for long high-power bars, and the highest-power models are fan or water cooled.

3. Lighting geometry

  • Bright field (specular): light and camera at equal and opposite angles to the surface. Shiny surfaces look bright; scratches and dents look dark.
  • Dark field (oblique): light at a low angle and camera looking straight down. A flat surface stays dark and raised or broken features scatter light into the lens.
  • Coaxial line light: the camera looks through a half-mirror along the light axis. For flat, mirror-like webs such as foil, glass and wafers - the line scan version of a coaxial light.
  • Tunnel, double-angle and multi-angle: light from two or more directions to fill in shadows on embossed, curved or textured material.
  • Transmitted: light under the web shining up into the camera, for holes, pinholes, coating gaps and contamination in film, nonwovens and glass.

4. Colour and wavelength

White suits colour line scan cameras. On mono cameras a single colour gives more contrast: red for general use and long LED life, blue for fine surface detail on metal, green as a compromise, UV to excite fluorescent inks, adhesives and coatings, infrared to see through some dyes and printing. A few models emit in the SWIR band for SWIR line scan cameras.

5. Driving, strobing and cooling

Line scan lights here run on 24 V DC or, for many of the longer and high-power bars, 48 V DC, so check which before choosing a light controller. The controller must supply the full power of the bar with margin; long bars may have two cables. Some ranges include an inline driver with analog dimming and overcurrent strobe from a PNP or NPN trigger. Fan- and water-cooled versions need airflow or a water supply.

What this category covers

ParameterRange in this category
Lit lengthunder 100 mm to over 2 m (several series to about 3 m)
Emitting widthcommonly 10-28 mm; wider tunnel and area versions
Colourswhite, red (625 / 660 nm), blue (455 / 470 nm), green (520-530 nm), UV (365 / 395 nm), IR (730 / 808 / 850 / 940 nm), RGB, SWIR on a few models
Supply24 V DC or 48 V DC
Coolingnatural, fan or water
Typesstandard, high power, high uniformity, focused, collimated, polarized, coaxial, oblique, tunnel, multi-angle

Browse white line scan lights or infrared line scan lights.

Typical applications

  • Surface defects on steel, aluminium and copper strip, foil and battery electrode coatings.
  • Print inspection on labels, packaging film and printed sheet.
  • Glass, display panels and film: scratches, bubbles, inclusions, using bright field or transmitted light.
  • Nonwovens, paper and textiles: holes, thin spots and contamination with a light under the web.
  • Cylindrical parts rotated under the camera to unroll the surface into one flat image.

Common mistakes

  • Choosing the lit length equal to the field of view: the image ends go dark and the edge of the web is missed.
  • Mounting a focused light at the wrong distance. The line is only thin and bright near its focal distance; a few millimetres off and brightness drops sharply.
  • Sizing brightness for an area scan exposure. A line scan exposure is microseconds, not milliseconds.
  • Ignoring flicker from PWM dimming that is not synchronised to the camera, which shows as bands across the image. Use a constant-current or strobed controller synchronised to the line trigger.
  • Not running flat-field correction in the camera after the light is installed, so residual non-uniformity stays in every image.

Questions

Can I use a bar light instead of a line scan light?
For slow lines and short fields, a bar light can work. For high line rates the narrow, focused output of a line scan light puts much more of its output on the scan line from the same power.

Focused or diffuse?
Focused for the most brightness on flat material at a fixed distance. Diffuse when the surface is shiny and wrinkled, or the material height changes, since a diffuse line is less sensitive to distance and angle.

How far from the web should the light sit?
Use the recommended working distance printed on the product page. Where stated, recommended distances in this category run from about 10-30 mm for compact units to 10-500 mm for large high-power bars.

What else does a line scan station need?
A line scan camera, a line scan lens that covers the sensor length, an encoder trigger and a controller. Configure the system to match them.
