Linear light source (LS-LSC-S57)
  • Linear light source (LS-LSC-S57)

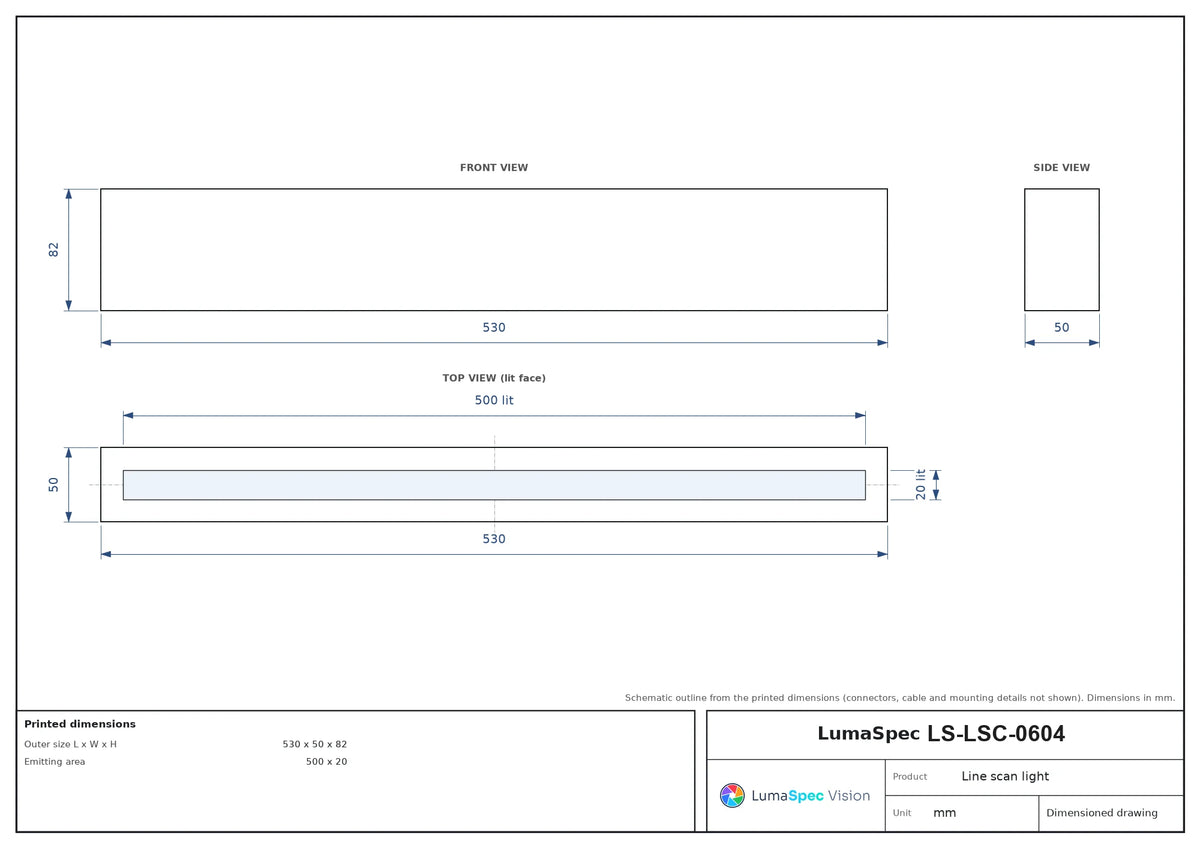

  • LS-LSC-0604 dimensions (mm)

Representative photo of this series

Line scan lights

500 mm linear light source (LS-LSC-0604)

Model LS-LSC-0604

  • ColourRed, Green, Blue, White, Infrared, UV
  • Emitting width20 mm
  • CoolingFan (labelled on the drawings)
  • Length530 mm
$1,539.00

Ships in 2-3 weeks

1.65 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

500 mm linear light source (LS-LSC-0604)LS-LSC-0604

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LED cold light source with no heat radiation, so the temperature of the irradiated product remains almost unchanged and the object is not damaged. Compatible with different UV adhesives, UV inks, UV varnishes and UV paints. Size can be customized.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LSC-0604
CoolingFan (labelled on the drawings)

Light

Emitting width (mm)20
Emitting length (mm)500

Mechanical

Length (mm)530
Width (mm)50
Height (mm)82
Mounting8 x M4 threaded, depth 6; 2 x M4 nut mounting slots
Shipping weight1.65 kg

Other models in the Linear light source (LS-LSC-S57) series

See all 20 models
ModelSize / key dataPriceAvailabilityLink
LS-LSC-0598 100 mm $459.00 Ships in 2-3 weeks View
LS-LSC-0599 200 mm $729.00 Ships in 2-3 weeks View
LS-LSC-0600 250 mm $869.00 Ships in 2-3 weeks View
LS-LSC-0601 300 mm $999.00 Ships in 2-3 weeks View
LS-LSC-0602 350 mm $1,139.00 Ships in 2-3 weeks View
LS-LSC-0603 400 mm $1,269.00 Ships in 2-3 weeks View
LS-LSC-0605 600 mm $1,809.00 Ships in 2-3 weeks View
LS-LSC-0606 700 mm $2,079.00 Ships in 2-3 weeks View
LS-LSC-0607 720 mm $2,139.00 Ships in 2-3 weeks View
LS-LSC-0608 750 mm $2,219.00 Ships in 2-3 weeks View
LS-LSC-0609 800 mm $2,349.00 Ships in 2-3 weeks View
LS-LSC-0610 850 mm $2,489.00 Ships in 2-3 weeks View
LS-LSC-0611 900 mm $2,619.00 Ships in 2-3 weeks View
LS-LSC-0612 950 mm $2,759.00 Ships in 2-3 weeks View
LS-LSC-0613 1000 mm $2,889.00 Ships in 2-3 weeks View
LS-LSC-0614 1050 mm $3,029.00 Ships in 2-3 weeks View
LS-LSC-0615 1100 mm $3,159.00 Ships in 2-3 weeks View
LS-LSC-0616 1150 mm $3,299.00 Ships in 2-3 weeks View
LS-LSC-0617 1200 mm $3,429.00 Ships in 2-3 weeks View
