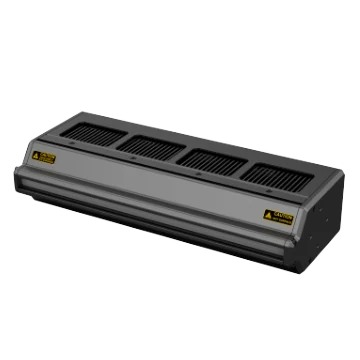

Line Scan Light, 270 mm, IR 808 nm (LS-LSC-0675)
Model LS-LSC-0675
- ColourInfrared
- Emitting area270 mm × 22 mm
- Size316 mm × 142.5 mm × 71 mm
- Voltage48 VDC
- Power176 W max
- Wavelength808±8 nm
$979.00
Ships in 2-3 weeks
4.51 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Line Scan Light, 270 mm, IR 808 nm. VCSEL-packaged LEDs for stronger near-infrared output Structural and fan cooling extends light service life
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0675 |
|---|---|
| Laser safety class | Class 4 |
| Nominal ocular hazard distance (NOHD) | 7.3 m |
Optics
| Best working distance | 50 ~ 90 mm |
|---|---|
| Field of view width | 270 mm |
Sensor and imaging
| Max. permissible exposure | 4.73 × 10^-7 W/m2 |
|---|
Interfaces and I/O
| Connector type | 19M-8H (cable not included) |
|---|---|
| Cable length | Additional options |
Light
| Color | IR808 |
|---|---|
| Emitting area dimension | 270 mm × 22 mm |
| LED rows | 1 |
| Wavelength | 808±8 nm |
| Beam divergence angle | 15±3 ° |
Environment and compliance
| Temperature | Operating temp.: 0 to 40 °C, Storage temp.: -20 to 70 °C |
|---|---|
| Humidity | 20% RH to 90% RH (no condensation) |
Electrical
| Power | 176 W max |
|---|---|
| Input voltage | 48 VDC |
| Maximum power | 60 W |
Mechanical
| Line width | < 4 mm @ 70 ± 20 mm |
|---|---|

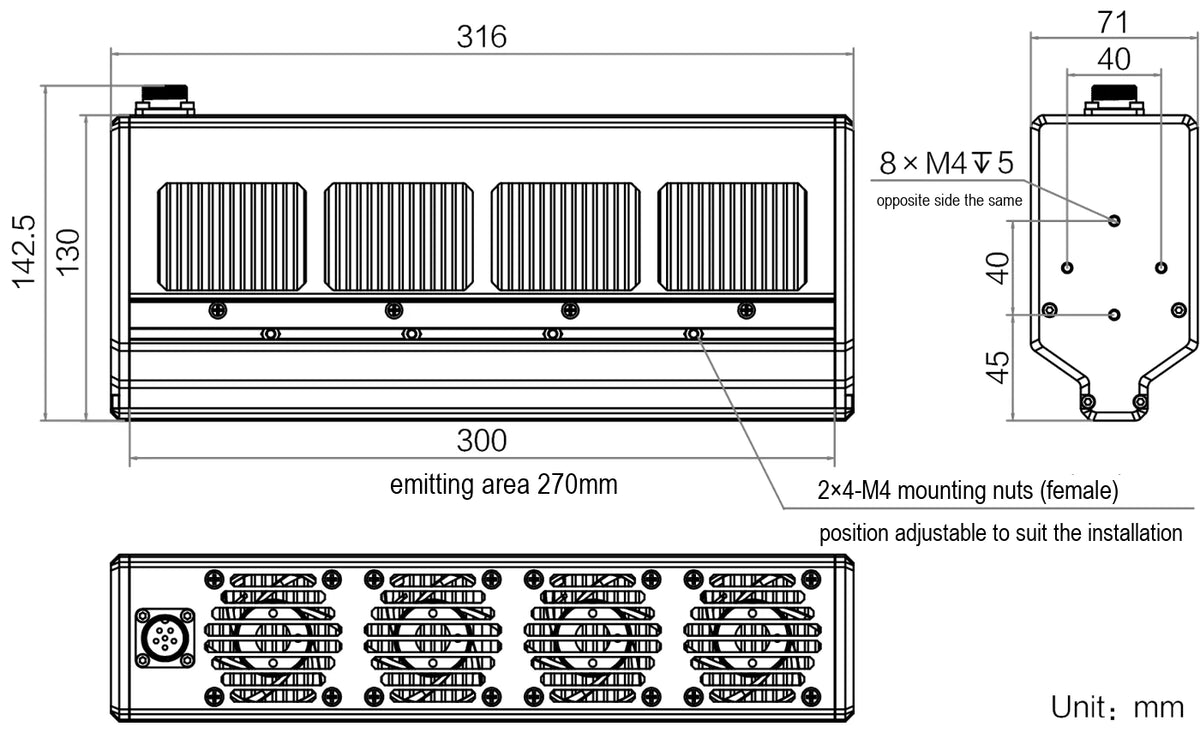

| Dimension | 316 mm × 142.5 mm × 71 mm |
| Weight | 3.15 kg |
| Shipping weight (estimated) | 4.51 kg |
