Line scan lights

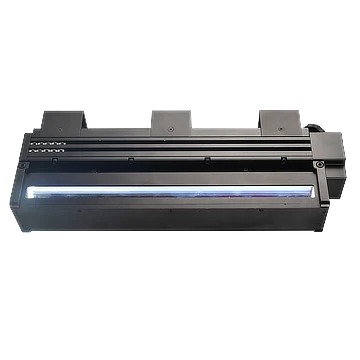

Line Scan Light, 343 mm, White, size 343 mm × 128.1 mm × 57.3 mm (LS-LSC-0670)
Model LS-LSC-0670
- ColourWhite
- Emitting area298 mm × 17 mm
- Size343 mm × 128.1 mm × 57.3 mm
- Power130 W
$999.00
Ships in 2-3 weeks
0.66 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Line Scan Light, 343 mm, White. Modular design: coaxial module and high-brightness line light detach easily One-piece aluminum alloy housing with fan for good heat dissipation
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0670 |
|---|
Interfaces and I/O
| Connector type | 19M-6H |
|---|---|
| Cable length | 500 mm |
Light
| Color | White |
|---|---|
| Color temperature | 6000 ~ 7000K |
| Emitting area dimension | 298 mm × 17 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% to 85% RH (non-condensing) |
Electrical
| Power | 130 W |
|---|
Mechanical

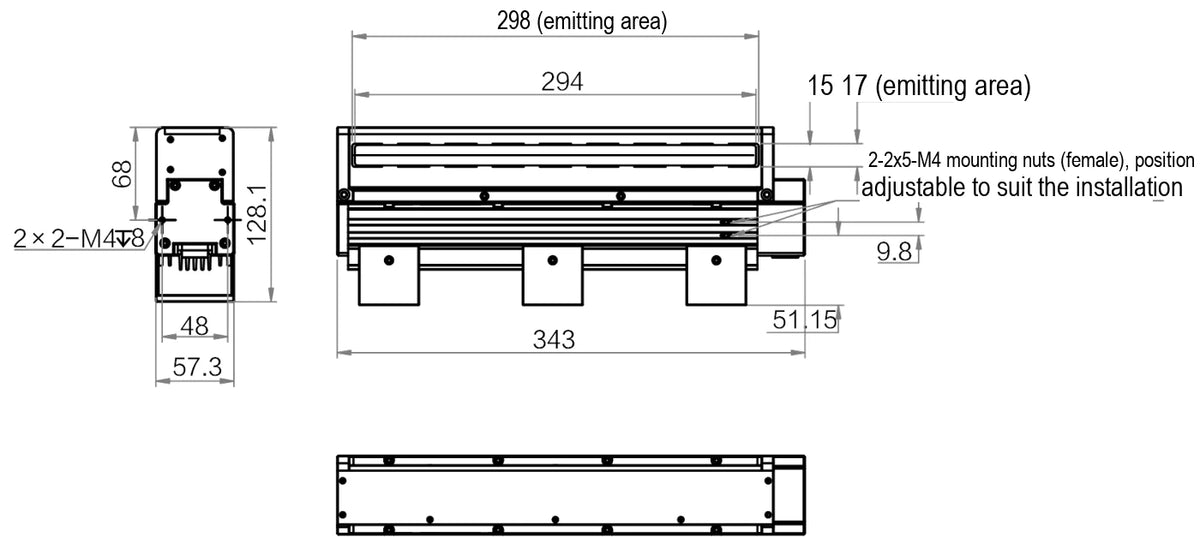

| Dimension | 343 mm × 128.1 mm × 57.3 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
Other models in the High-brightness line lights (LS-LSC-S62) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0668 | 143 mm, White | $459.00 | Ships in 2-3 weeks | View |
| LS-LSC-0669 | 243 mm, White | $729.00 | Ships in 2-3 weeks | View |
