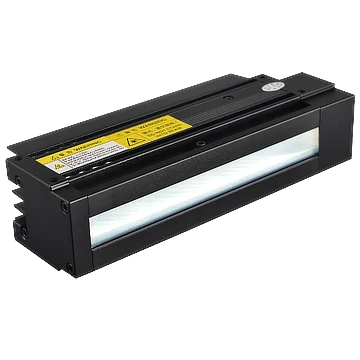

Line Scan Light, 1970 mm, White
LS-LSC-0666
- Colour White
- Emitting area 1900 mm × 17 mm
- Size 1970 mm × 58 mm × 90.1 mm
$5,329.00Quote
Ships in 2-3 weeks
Lights
Line scan lights
Line scan lights put a narrow, very bright and uniform line on moving web, sheet and conveyor inspection for line-scan cameras. Choose cooling by duty and brightness: passive, fan or water cooled, plus coaxial and dual-angle versions.
Shop by colour: Red line scan lights · Blue line scan lights · Green line scan lights · White line scan lights · Infrared line scan lights · UV line scan lights
Products
Line Scan Light, 1770 mm, White
LS-LSC-0664
- Colour White
- Emitting area 1700 mm × 17 mm
- Size 1770 mm × 58 mm × 90.1 mm
$4,789.00Quote
Ships in 2-3 weeks
Line Scan Light, 1670 mm, White
LS-LSC-0663
- Colour White
- Emitting area 1600 mm × 17 mm
- Size 1670 mm × 58 mm × 90.1 mm
$4,519.00Quote
Ships in 2-3 weeks
Line Scan Light, 1170 mm, White
LS-LSC-0659
- Colour White
- Emitting area 1100 mm × 17 mm
- Size 1170 mm × 58 mm × 90.1 mm
$3,169.00Quote
Ships in 2-3 weeks
Line Scan Light, 1370 mm, White
LS-LSC-0661
- Colour White
- Emitting area 1300 mm × 17 mm
- Size 1370 mm × 58 mm × 90.1 mm
$3,709.00Quote
Ships in 2-3 weeks
Line Scan Light, 1270 mm, White
LS-LSC-0660
- Colour White
- Emitting area 1200 mm × 17 mm
- Size 1270 mm × 58 mm × 90.1 mm
$3,439.00Quote
Ships in 2-3 weeks
Line Scan Light, 870 mm, White
LS-LSC-0656
- Colour White
- Emitting area 800 mm × 17 mm
- Size 870 mm × 58 mm × 90.1 mm
$2,359.00
Ships in 2-3 weeks
Line Scan Light, 1070 mm, White
LS-LSC-0658
- Colour White
- Emitting area 1000 mm × 17 mm
- Size 1070 mm × 58 mm × 90.1 mm
$2,899.00Quote
Ships in 2-3 weeks
Line Scan Light, 970 mm, White
LS-LSC-0657
- Colour White
- Emitting area 900 mm × 17 mm
- Size 970 mm × 58 mm × 90.1 mm
$2,629.00Quote
Ships in 2-3 weeks
Line Scan Light, 770 mm, White
LS-LSC-0655
- Colour White
- Emitting area 700 mm × 17 mm
- Size 770 mm × 58 mm × 90.1 mm
$2,089.00
Ships in 2-3 weeks
Line Scan Light, 543 mm, White
LS-LSC-0653
- Colour White
- Emitting area 500 mm × 17 mm
- Size 543 mm × 58 mm × 90.1 mm
$1,549.00
Ships in 2-3 weeks
Line Scan Light, 420 mm
LS-LSC-0652
- Emitting area 400 mm × 33 mm
- Size 420 mm × 113 mm × 45 mm
- Power 96 W
$1,269.00
Ships in 2-3 weeks
Line Scan Light, 393 mm, White
LS-LSC-0650
- Colour White
- Emitting area 350 mm × 17 mm
- Size 393 mm × 58 mm × 90.1 mm
$1,139.00
Ships in 2-3 weeks
Line Scan Light, 643 mm, White
LS-LSC-0654
- Colour White
- Emitting area 600 mm × 17 mm
- Size 643 mm × 58 mm × 90.1 mm
$1,809.00
Ships in 2-3 weeks
Line Scan Light, 343 mm, White, size 343 mm × 58 mm × 90.1 mm
LS-LSC-0649
- Colour White
- Emitting area 300 mm × 17 mm
- Size 343 mm × 58 mm × 90.1 mm
$1,009.00
Ships in 2-3 weeks
Line Scan Light, 443 mm, White
LS-LSC-0651
- Colour White
- Emitting area 400 mm × 17 mm
- Size 443 mm × 58 mm × 90.1 mm
$1,279.00
Ships in 2-3 weeks

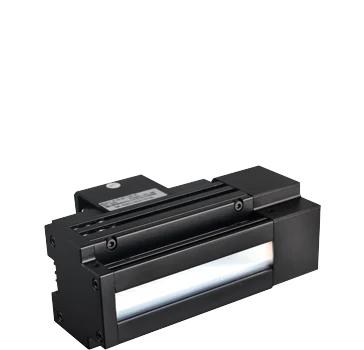

Line Scan Light, 143 mm, White, size 143 mm × 58 mm × 90.1 mm
LS-LSC-0647
- Colour White
- Emitting area 100 mm × 17 mm
- Size 143 mm × 58 mm × 90.1 mm
$459.00
Ships in 2-3 weeks
Line Scan Light, 143 mm, Red
LS-LSC-0646
- Colour Red
- Emitting area 100 mm × 17 mm
- Size 143 mm × 58 mm × 90.1 mm
$459.00
Ships in 2-3 weeks
Line Scan Light, 216 mm, White
LS-LSC-0644
- Colour White
- Emitting area 200 mm × 17 mm
- Size 216 mm × 53 mm × 81.8 mm
$729.00
Ships in 2-3 weeks
Line Scan Light, 243 mm, White, size 243 mm × 58 mm × 90.1 mm
LS-LSC-0648
- Colour White
- Emitting area 200 mm × 17 mm
- Size 243 mm × 58 mm × 90.1 mm
$739.00
Ships in 2-3 weeks
Line Scan Light, 116 mm, White
LS-LSC-0643
- Colour White
- Emitting area 100 mm × 17 mm
- Size 116 mm × 53 mm × 81.8 mm
$459.00
Ships in 2-3 weeks
Line Scan Light, 1556 mm, White
LS-LSC-0641
- Colour White
- Emitting area 1500 mm × 17 mm
- Size 1556 mm × 45 mm × 49.8 mm
$4,209.00Quote
Ships in 2-3 weeks
Line Scan Light, 316 mm, White
LS-LSC-0645
- Colour White
- Emitting area 300 mm × 17 mm
- Size 316 mm × 53 mm × 81.8 mm
$999.00
Ships in 2-3 weeks
Line Scan Light, 788 mm
LS-LSC-0637
- Emitting area 750 mm × 17 mm
- Size 788 mm × 45 mm × 71 mm
- Power 115.2 W
$2,209.00
Ships in 2-3 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-LSC-0666Line Scan Light, 1970 mm, White
| White | 1900 mm × 17 mm | 1970 mm × 58 mm × 90.1 mm | 820.8 W | - | - | $5,329.00Quote | Ships in 2-3 weeks | |
 LS-LSC-0664Line Scan Light, 1770 mm, White
| White | 1700 mm × 17 mm | 1770 mm × 58 mm × 90.1 mm | 734.4 W | - | - | $4,789.00Quote | Ships in 2-3 weeks | |
 LS-LSC-0663Line Scan Light, 1670 mm, White
| White | 1600 mm × 17 mm | 1670 mm × 58 mm × 90.1 mm | 672 W | - | - | $4,519.00Quote | Ships in 2-3 weeks | |
 LS-LSC-0659Line Scan Light, 1170 mm, White
| White | 1100 mm × 17 mm | 1170 mm × 58 mm × 90.1 mm | 480 W | - | - | $3,169.00Quote | Ships in 2-3 weeks | |
 LS-LSC-0661Line Scan Light, 1370 mm, White
| White | 1300 mm × 17 mm | 1370 mm × 58 mm × 90.1 mm | 576 W | - | - | $3,709.00Quote | Ships in 2-3 weeks | |
 LS-LSC-0660Line Scan Light, 1270 mm, White
| White | 1200 mm × 17 mm | 1270 mm × 58 mm × 90.1 mm | 514.8 W | - | - | $3,439.00Quote | Ships in 2-3 weeks | |
 LS-LSC-0656Line Scan Light, 870 mm, White
| White | 800 mm × 17 mm | 870 mm × 58 mm × 90.1 mm | 384 W | - | - | $2,359.00 | Ships in 2-3 weeks | |
 LS-LSC-0658Line Scan Light, 1070 mm, White
| White | 1000 mm × 17 mm | 1070 mm × 58 mm × 90.1 mm | 432 W | - | - | $2,899.00Quote | Ships in 2-3 weeks | |
 LS-LSC-0657Line Scan Light, 970 mm, White
| White | 900 mm × 17 mm | 970 mm × 58 mm × 90.1 mm | 393.6 W | - | - | $2,629.00Quote | Ships in 2-3 weeks | |
 LS-LSC-0655Line Scan Light, 770 mm, White
| White | 700 mm × 17 mm | 770 mm × 58 mm × 90.1 mm | 307.2 W | - | - | $2,089.00 | Ships in 2-3 weeks | |
 LS-LSC-0653Line Scan Light, 543 mm, White
| White | 500 mm × 17 mm | 543 mm × 58 mm × 90.1 mm | 216 W | - | - | $1,549.00 | Ships in 2-3 weeks | |
 LS-LSC-0652Line Scan Light, 420 mm
| - | 400 mm × 33 mm | 420 mm × 113 mm × 45 mm | 96 W | White | - | $1,269.00 | Ships in 2-3 weeks | |
 LS-LSC-0650Line Scan Light, 393 mm, White
| White | 350 mm × 17 mm | 393 mm × 58 mm × 90.1 mm | 173 W | - | - | $1,139.00 | Ships in 2-3 weeks | |
 LS-LSC-0654Line Scan Light, 643 mm, White
| White | 600 mm × 17 mm | 643 mm × 58 mm × 90.1 mm | 259.2 W | - | - | $1,809.00 | Ships in 2-3 weeks | |
 LS-LSC-0649Line Scan Light, 343 mm, White, size 343 mm × 58 mm × 90.1 mm
| White | 300 mm × 17 mm | 343 mm × 58 mm × 90.1 mm | 129.6 W | - | - | $1,009.00 | Ships in 2-3 weeks | |
 LS-LSC-0651Line Scan Light, 443 mm, White
| White | 400 mm × 17 mm | 443 mm × 58 mm × 90.1 mm | 172.8 W | - | - | $1,279.00 | Ships in 2-3 weeks | |
 LS-LSC-0647Line Scan Light, 143 mm, White, size 143 mm × 58 mm × 90.1 mm
| White | 100 mm × 17 mm | 143 mm × 58 mm × 90.1 mm | 48 W | - | - | $459.00 | Ships in 2-3 weeks | |
 LS-LSC-0646Line Scan Light, 143 mm, Red
| Red | 100 mm × 17 mm | 143 mm × 58 mm × 90.1 mm | 48 W | - | 625 nm | $459.00 | Ships in 2-3 weeks | |
 LS-LSC-0644Line Scan Light, 216 mm, White
| White | 200 mm × 17 mm | 216 mm × 53 mm × 81.8 mm | 33.6 W | - | - | $729.00 | Ships in 2-3 weeks | |
 LS-LSC-0648Line Scan Light, 243 mm, White, size 243 mm × 58 mm × 90.1 mm
| White | 200 mm × 17 mm | 243 mm × 58 mm × 90.1 mm | 96 W | - | - | $739.00 | Ships in 2-3 weeks | |
 LS-LSC-0643Line Scan Light, 116 mm, White
| White | 100 mm × 17 mm | 116 mm × 53 mm × 81.8 mm | 16.8 W | - | - | $459.00 | Ships in 2-3 weeks | |
 LS-LSC-0641Line Scan Light, 1556 mm, White
| White | 1500 mm × 17 mm | 1556 mm × 45 mm × 49.8 mm | 230.4 W | - | - | $4,209.00Quote | Ships in 2-3 weeks | |
 LS-LSC-0645Line Scan Light, 316 mm, White
| White | 300 mm × 17 mm | 316 mm × 53 mm × 81.8 mm | 50.4 W | - | - | $999.00 | Ships in 2-3 weeks | |
 LS-LSC-0637Line Scan Light, 788 mm
| - | 750 mm × 17 mm | 788 mm × 45 mm × 71 mm | 115.2 W | White | - | $2,209.00 | Ships in 2-3 weeks |
How to choose a line scan light
A line scan camera builds its image one row of pixels at a time while the web or part moves past. It needs light only on a narrow stripe, but that stripe must be very bright, because each line is exposed for microseconds, and very even along its length, because any dip shows up as a streak through every image. A line scan light has a long, narrow emitting window, often with a lens that focuses the LEDs into a thin, intense line.
1. Length: cover the scan line plus margin
The lit length must be longer than the field of view the camera sees across the web. Brightness falls off over the last few centimetres at each end, so add margin on both sides - roughly 10% of the field width, or more when the light sits far from the part. Lengths here run from short units of under 100 mm for narrow parts and lab setups to bars of 2 m and more for full-width web inspection; several ranges come in fixed steps (for example 75 mm or 150 mm increments), so you can match the web width closely.
2. Brightness: work back from the line rate
The exposure time of a line scan camera is at most the line period: at 50 kHz a line has 20 µs. Use the line rate calculator to get the line rate from web speed and pixel size, then pick a light that gives enough signal in that time. Focused (condensing) versions put the LED output into a narrow line and give the highest brightness at their focal distance; diffuse versions spread the light and tolerate height changes better. Electrical power in this category runs from a few watts for mini lights to several hundred watts for long high-power bars, and the highest-power models are fan or water cooled.
3. Lighting geometry
- Bright field (specular): light and camera at equal and opposite angles to the surface. Shiny surfaces look bright; scratches and dents look dark.
- Dark field (oblique): light at a low angle and camera looking straight down. A flat surface stays dark and raised or broken features scatter light into the lens.
- Coaxial line light: the camera looks through a half-mirror along the light axis. For flat, mirror-like webs such as foil, glass and wafers - the line scan version of a coaxial light.
- Tunnel, double-angle and multi-angle: light from two or more directions to fill in shadows on embossed, curved or textured material.
- Transmitted: light under the web shining up into the camera, for holes, pinholes, coating gaps and contamination in film, nonwovens and glass.
4. Colour and wavelength
White suits colour line scan cameras. On mono cameras a single colour gives more contrast: red for general use and long LED life, blue for fine surface detail on metal, green as a compromise, UV to excite fluorescent inks, adhesives and coatings, infrared to see through some dyes and printing. A few models emit in the SWIR band for SWIR line scan cameras.
5. Driving, strobing and cooling
Line scan lights here run on 24 V DC or, for many of the longer and high-power bars, 48 V DC, so check which before choosing a light controller. The controller must supply the full power of the bar with margin; long bars may have two cables. Some ranges include an inline driver with analog dimming and overcurrent strobe from a PNP or NPN trigger. Fan- and water-cooled versions need airflow or a water supply.
What this category covers
| Parameter | Range in this category |
|---|---|
| Lit length | under 100 mm to over 2 m (several series to about 3 m) |
| Emitting width | commonly 10-28 mm; wider tunnel and area versions |
| Colours | white, red (625 / 660 nm), blue (455 / 470 nm), green (520-530 nm), UV (365 / 395 nm), IR (730 / 808 / 850 / 940 nm), RGB, SWIR on a few models |
| Supply | 24 V DC or 48 V DC |
| Cooling | natural, fan or water |
| Types | standard, high power, high uniformity, focused, collimated, polarized, coaxial, oblique, tunnel, multi-angle |
Browse white line scan lights or infrared line scan lights.
Typical applications
- Surface defects on steel, aluminium and copper strip, foil and battery electrode coatings.
- Print inspection on labels, packaging film and printed sheet.
- Glass, display panels and film: scratches, bubbles, inclusions, using bright field or transmitted light.
- Nonwovens, paper and textiles: holes, thin spots and contamination with a light under the web.
- Cylindrical parts rotated under the camera to unroll the surface into one flat image.
Common mistakes
- Choosing the lit length equal to the field of view: the image ends go dark and the edge of the web is missed.
- Mounting a focused light at the wrong distance. The line is only thin and bright near its focal distance; a few millimetres off and brightness drops sharply.
- Sizing brightness for an area scan exposure. A line scan exposure is microseconds, not milliseconds.
- Ignoring flicker from PWM dimming that is not synchronised to the camera, which shows as bands across the image. Use a constant-current or strobed controller synchronised to the line trigger.
- Not running flat-field correction in the camera after the light is installed, so residual non-uniformity stays in every image.
Questions
Can I use a bar light instead of a line scan light?
For slow lines and short fields, a
bar light can work. For high line rates the narrow, focused output of a line scan
light puts much more of its output on the scan line from the same power.
Focused or diffuse?
Focused for the most brightness on flat material at a fixed distance. Diffuse when the
surface is shiny and wrinkled, or the material height changes, since a diffuse line is less sensitive to distance and
angle.
How far from the web should the light sit?
Use the recommended working distance printed on the product page.
Where stated, recommended distances in this category run from about 10-30 mm for compact units to 10-500 mm for
large high-power bars.
What else does a line scan station need?
A line scan camera,
a line scan lens that covers the sensor length, an encoder trigger and a
controller. Configure the system to match them.
