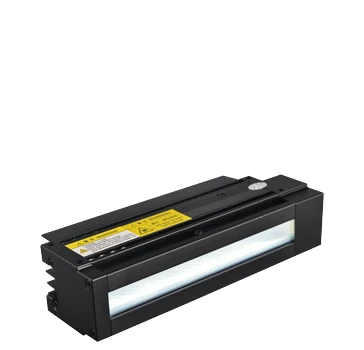

Line Scan Light, 788 mm (LS-LSC-0637)
  • Line Scan Light, 788 mm (LS-LSC-0637)

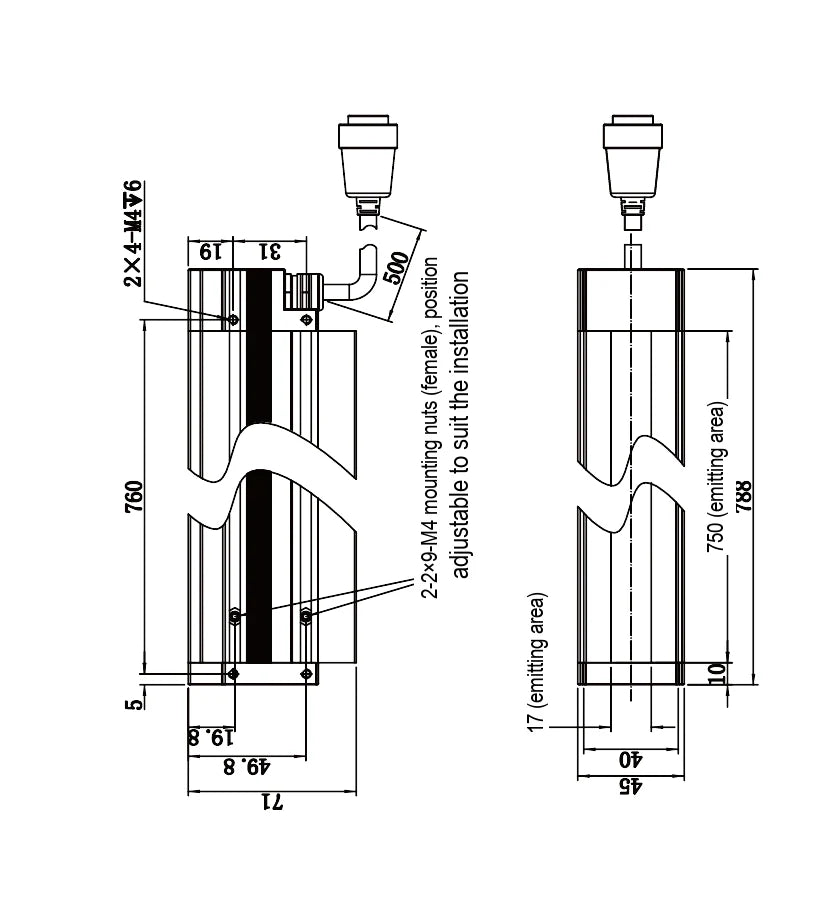

  • LS-LSC-0637 dimensions (mm)

Line scan lights

Line Scan Light, 788 mm (LS-LSC-0637)

Model LS-LSC-0637

  • Emitting area750 mm × 17 mm
  • Size788 mm × 45 mm × 71 mm
  • Power115.2 W
  • ColorWhite
$2,209.00

Ships in 2-3 weeks

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Line Scan Light, 788 mm (LS-LSC-0637)LS-LSC-0637

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Line Scan Light, 788 mm. One-piece aluminum alloy housing for good heat dissipation Added diffuser film for good uniformity

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LSC-0637

Interfaces and I/O

Connector type20M-4J
Cable length500 mm

Light

ColorWhite
Color temperature6000~7000K
LED rows1
Emitting area dimension750 mm × 17 mm
Diffuse plate includedIncluded

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% to 85% RH (non-condensing)

Electrical

Power115.2 W

Mechanical

Dimension788 mm × 45 mm × 71 mm
Shipping weight (estimated)0.66 kg

Other models in the Classic line lights (LS-LSC-S59) series

See all 10 models
ModelSize / key dataPriceAvailabilityLink
LS-LSC-0633 188 mm, White $599.00 Ships in 2-3 weeks View
LS-LSC-0634 338 mm, White $999.00 Ships in 2-3 weeks View
LS-LSC-0635 488 mm, White $1,399.00 Ships in 2-3 weeks View
LS-LSC-0636 638 mm, White $1,799.00 Ships in 2-3 weeks View
LS-LSC-0638 788 mm, White $2,209.00 Ships in 2-3 weeks View
LS-LSC-0639 1256 mm, White $3,419.00 Quote Ships in 2-3 weeks View
LS-LSC-0640 1406 mm, White $3,809.00 Quote Ships in 2-3 weeks View
LS-LSC-0641 1556 mm, White $4,209.00 Quote Ships in 2-3 weeks View
LS-LSC-0642 1856 mm, White $5,019.00 Quote Ships in 2-3 weeks View
