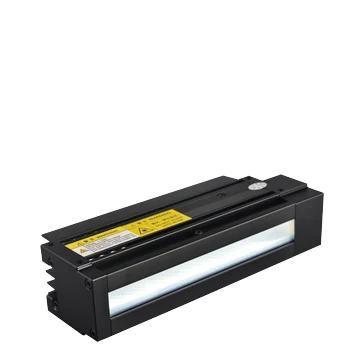

Line Scan Light, 188 mm, White (LS-LSC-0633)
Model LS-LSC-0633
- ColourWhite
- Emitting area150 mm × 17 mm
- Size188 mm × 45 mm × 71 mm
- Power23.0 W
$599.00
Ships in 2-3 weeks
0.66 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Line Scan Light, 188 mm, White. One-piece aluminum alloy housing for good heat dissipation Added diffuser film for good uniformity
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0633 |
|---|
Interfaces and I/O
| Connector type | 20M-4J |
|---|---|
| Cable length | 500 mm |
Light
| Color | White |
|---|---|
| Color temperature | 6000~7000K |
| LED rows | 1 |
| Emitting area dimension | 150 mm × 17 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% to 85% RH (non-condensing) |
Electrical
| Power | 23.0 W |
|---|
Mechanical

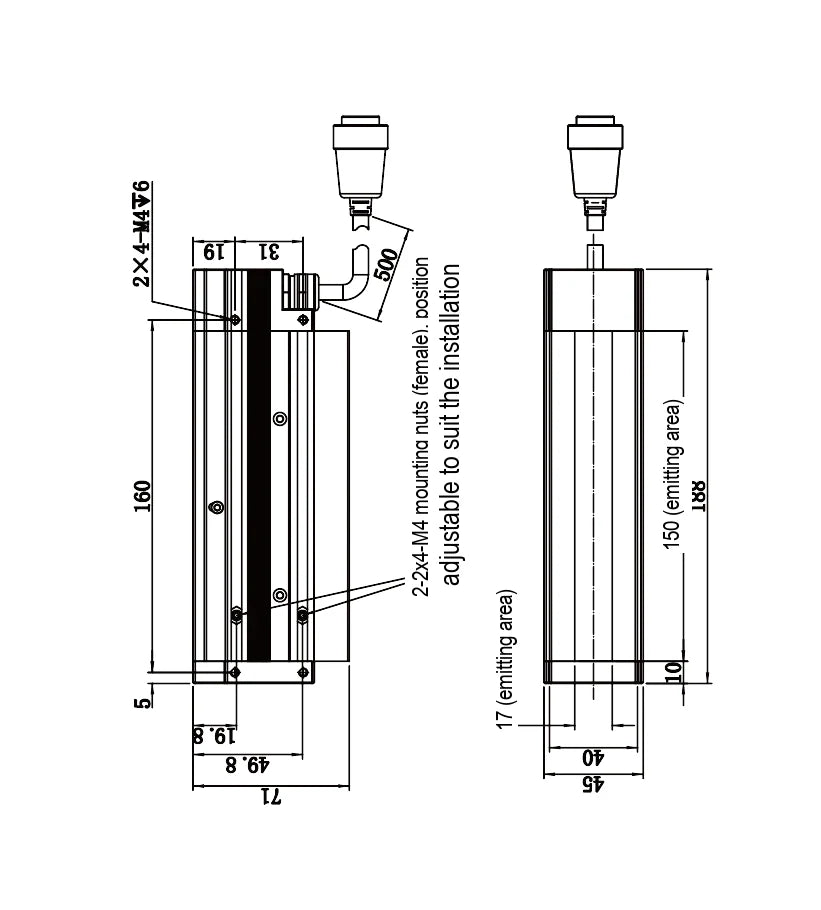

| Dimension | 188 mm × 45 mm × 71 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
Other models in the Classic line lights (LS-LSC-S59) series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0634 | 338 mm, White | $999.00 | Ships in 2-3 weeks | View |
| LS-LSC-0635 | 488 mm, White | $1,399.00 | Ships in 2-3 weeks | View |
| LS-LSC-0636 | 638 mm, White | $1,799.00 | Ships in 2-3 weeks | View |
| LS-LSC-0638 | 788 mm, White | $2,209.00 | Ships in 2-3 weeks | View |
| LS-LSC-0637 | 788 mm | $2,209.00 | Ships in 2-3 weeks | View |
| LS-LSC-0639 | 1256 mm, White | $3,419.00 Quote | Ships in 2-3 weeks | View |
| LS-LSC-0640 | 1406 mm, White | $3,809.00 Quote | Ships in 2-3 weeks | View |
| LS-LSC-0641 | 1556 mm, White | $4,209.00 Quote | Ships in 2-3 weeks | View |
| LS-LSC-0642 | 1856 mm, White | $5,019.00 Quote | Ships in 2-3 weeks | View |
